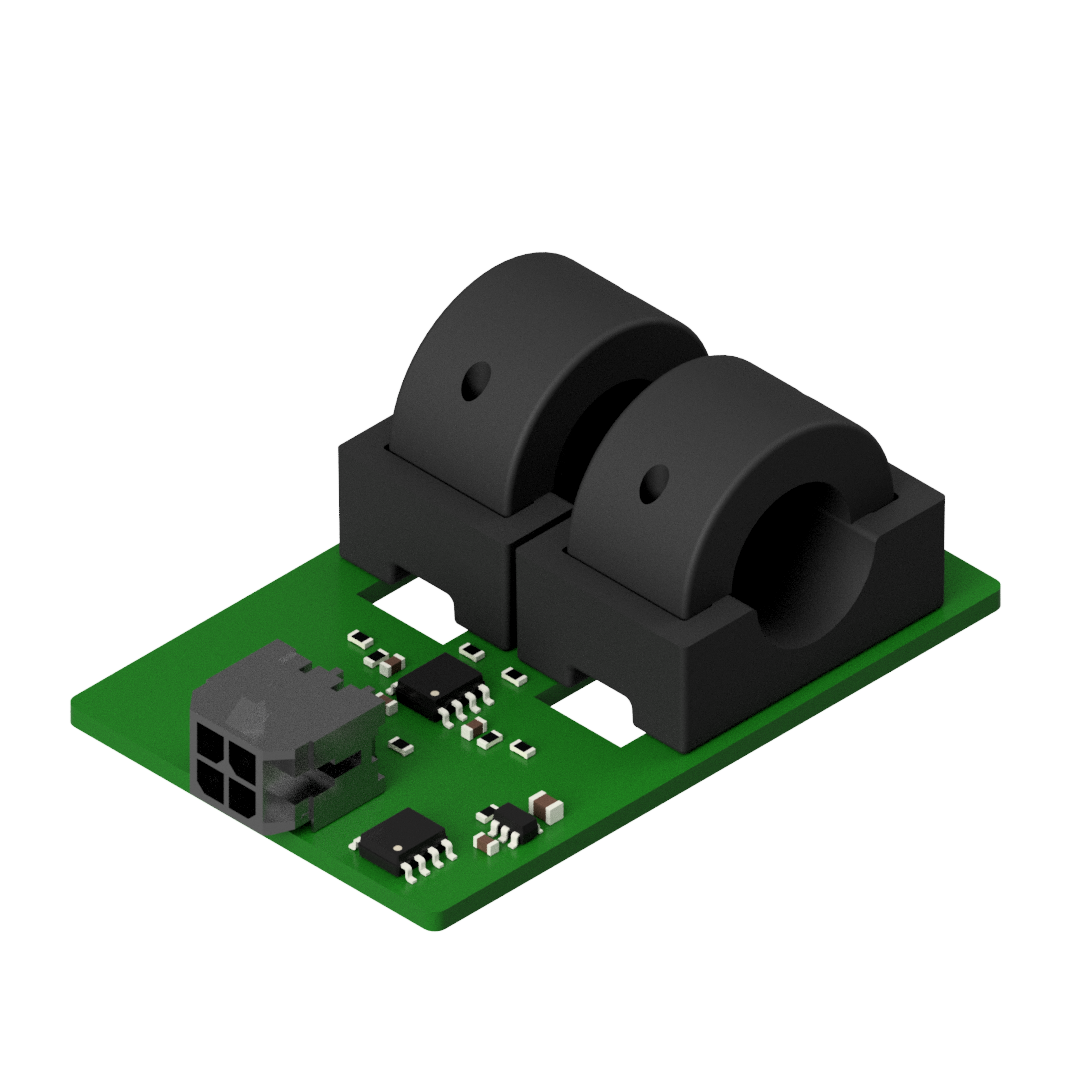

MDC-DR-10S-A

Dual Range Current Sensor

A dual-range current Sensor for safety-critical applications, offering two independent analog outputs. Thanks to the non-intrusive clamp-on design, the sensor can be easily installed without disconnection, making it ideal for retrofit installations in industrial, IoT, and metering applications. Furthermore, a broad dynamic range of currents can be measured and the customer requires no calibration.

Series Resources

Current Sensing for High Power

When powered with a DC voltage of 5V or 10V, the module delivers a linear analog output ranging from 0.5V to 4.5V or 1V to 9V, corresponding to the primary input current. This sensor boasts exceptional linearity, with an error margin of less than 0.5% FS.

Equipped with a Melexis IMC-Hall® current sensor, the module offers outstanding offset stability, as low as ±5mV, and maintains sensitivity drift to just 1% across the full temperature range. The module features a dual-range output, with each Hall sensor generating a signal tailored to the maximum current range.

Features

Input Voltage: 5 or 10 VDC
Hall-Sensor Measurement
Temp. Range: 10° to 85°C
Low Offset Drift <5 mV
Low Sensitivity drift <1 %
DC and AC up to 30kHz
Snap-Fit installation
Non intrusive sensing
Small Size, Lightweight
Excellent output linearity
Dual Range Signal Output

Applications

Industrial
E-metering
E-mobility
Photovoltaic
Industrial Power Plants
Redundant measurements
Battery management system

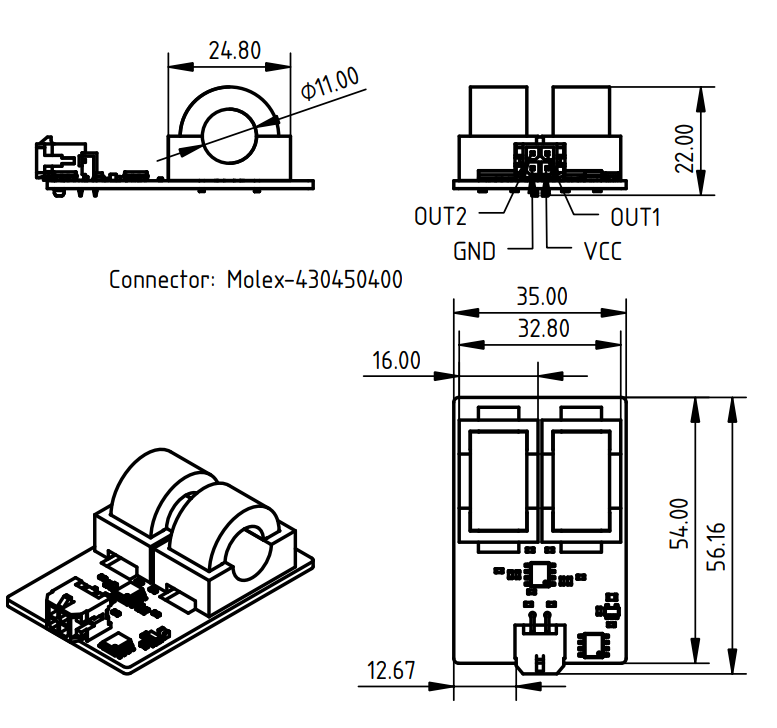

Dimensions

Technical drawing of the MDC_DR_10S_A Dimensions

Standard Product, Add-Ons, or Custom Solutions

Designed using Hall-effect technology, all our sensors provide a consistent, high-performance signal in a lightweight, streamlined solution. Regardless of your board arrangement and housing requirements, our engineers can provide you with a standard sensor or build a sensor to your concise specifications, guaranteeing it will fit your requirements.

This specific design is a custom solution that provides a cost-effective solution for high-amperage applications based on our established modular design building blocks.

Specifications

Absolute Maximum Ratings - Nonoperating conditions
Positive Supply Voltage	+10 V
Reverse Supply Voltage	-0.3 V
Positive Output Voltage	+10 V
Reverse Output Voltage	-0.3 V
Output Current	±50m A
Reverse Output Current	-50m A
Ambient Temp.	0 to +105°C

General Electrical Specification - Absolute Maximum Ratings
Nominal Supply Voltage	4.5 - 5.5 V
Supply Current	18 - 30 mA
Output Resistive Load	10 - 100 kΩ
Linear Output Range	10 - 90 %V_DD
Broken GND Ouptut Level	96 - 100 %V_DD
Broken VDD Ouptut Level	0 - 4 %V_DD
Primary Current	10 - 250 Apk
Output Quiescent Voltage	50 %V_DD

Analog Output Specification - Accuracy specification
Thermal Offset Drift	±5 mV
Thermal Sens. Drift	±1 %S
RMS Output Noise	8 mV_RMS
VOQ Ratiometry	±0.4 %V_OQ
Sensitivity Ratiometry	±0.4 %V_OQ

Timing and Frequency Specification - Timing specification
Refresh Rate	1 μs
Step Response Time	2-3 μs
Bandwidth	30 kHz

Operating Parameters: T_A = +10 to +85 ◦C, V_DD = 5V±10%,
unless otherwise specified.
