CTS-CS-CAX-10

The CTS-CS-CAX-10-A is an analog open-loop current sensor module designed for non-intrusive and isolated measurement of electric currents. Thanks to the clamp-on design, the contactless current sensor can be safely installed without interrupting the cable.

Series Resources

Data Sheet
ROHS
Reach Statement

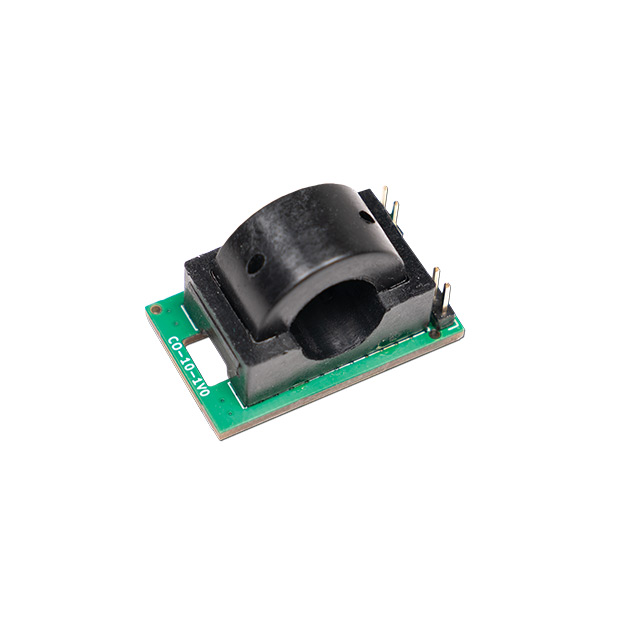

10[mm] Clamp-On Current Sensor Module

The module features a PCB with a Melexis IMC-Hall® planar current sensor, a CTS-CS-CAX-10 Clamp-On shield, and all necessary components for easy installation and operation.

With a 5V DC supply, the module delivers a linear analog output ranging from 500 mV to 4500 mV, corresponding to the primary input current. The CTS-CS-CAX-10 model ensures excellent linearity with an error margin of less than 0.5% FS. The integrated Melexis IMC-Hall® sensor provides a low offset of ±5 mV and a sensitivity drift of just 1% across the full temperature range.

This module is ideal for a variety of applications, including DC and AC current sensing up to 30 kHz, motor control, battery monitoring, charge control, white goods, and more.

Features

Low hysteresis
High Permeability
Hall-Sensor Measurement
High Linearity up to 200 A
Temperature Range: 10 to 85 °C
Low Offset drift <5 mV
Low Sensitivity drift <1 %
DC and AC (30 kHz)
Snap-Fit installation
Non intrusive sensing
Small Size, Lightweight
Excellent output linearity

Applications

IoT
Industrial
E-metering
Photovoltaic

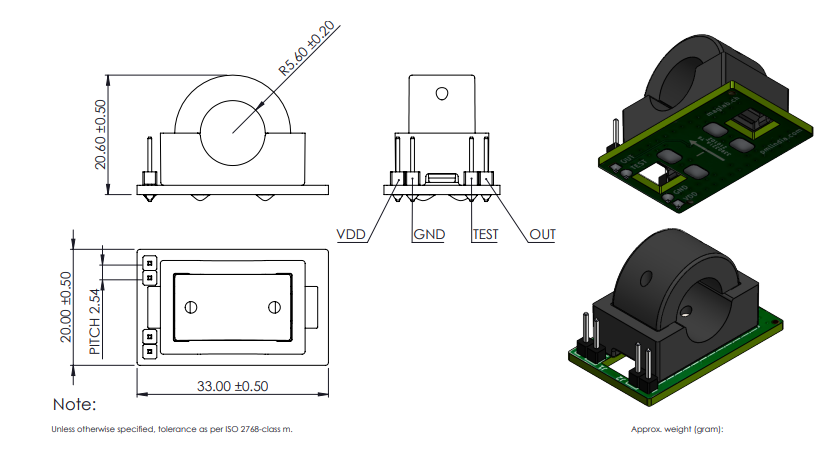

Dimensions

Technical drawing of the CO-10-SF-A Dimensions

Standard Product, Add-Ons or Custom Solutions

With both off-the-shelf and customized solutions, we meet a wide range of performance needs based on our established modular design building blocks. These sensors provide a cost-effective solution for high-amperage drive motors, even with customized packaging and mounting options.

Designed using Hall-effect technology, all our sensors provide a consistent, high-performance signal in a lightweight, streamlined solution. Regardless of your board arrangement and housing requirements, our engineers can build a sensor to your concise specifications, guaranteeing it will fit your requirements.

Find a Solution

Specifications

Absolute Maximum Ratings - Nonoperating conditions
Positive Supply Voltage	+10 V
Reverse Supply Voltage	-0.3 V
Positive Output Voltage	+10 V
Reverse Output Voltage	-0.3 V
Output Current	±50 m A
Reverse Output Current	-50 m A
Ambient Temp.	0 to +120°C
ESD Human Body Model	2 kV

General Electrical Specification - Absolute Maximum Ratings
Nominal Supply Voltage	4.5 - 5.5 V
Supply Current	9 - 15 mA
Output Resistive Load	10 - 200 kΩ
Linear Output Range	10 - 90 %V_DD
Broken GND Ouptut Level	96 - 100 %V_DD
Broken VDD Ouptut Level	0 - 4 %V_DD
Output Quiescent Voltage	50 %V_DD

Analog Output Specification - Accuracy specification
Thermal Offset Drift	±5 mV
Thermal Sens. Drift	±1 %S
RMS Output Noise	8 mV_RMS
VOQ Ratiometry	±0.4 %V_OQ
Sensitivity Ratiometry	±0.4 %V_OQ
