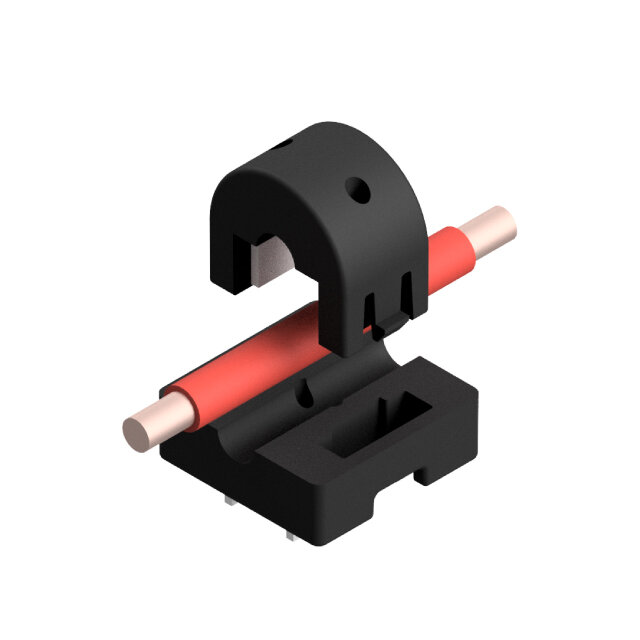

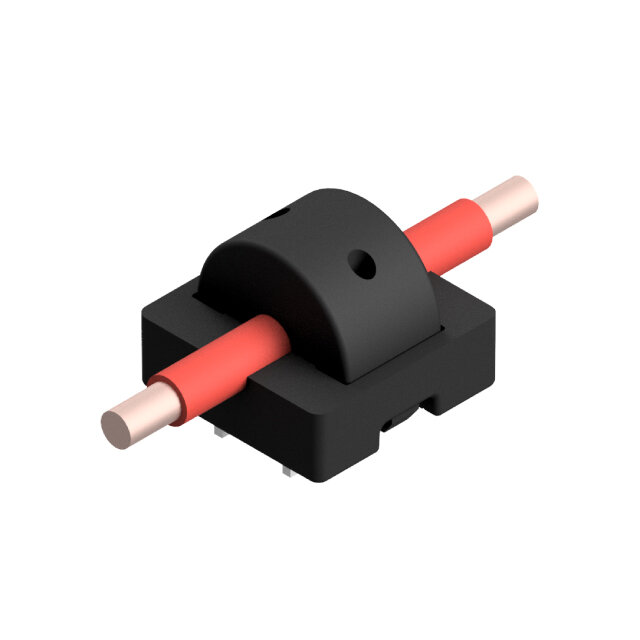

This magnetic field concentrator magnetic is designed for non-intrusive and isolated measurements of electric currents. Thanks to the Clamp-On design, the contactless current sensor can be safely installed without interrupting the cable.
A magnetic field concentrator is a device that focuses the magnetic flux generated by an electrical current flowing through a system, such as a current-conducting wire.

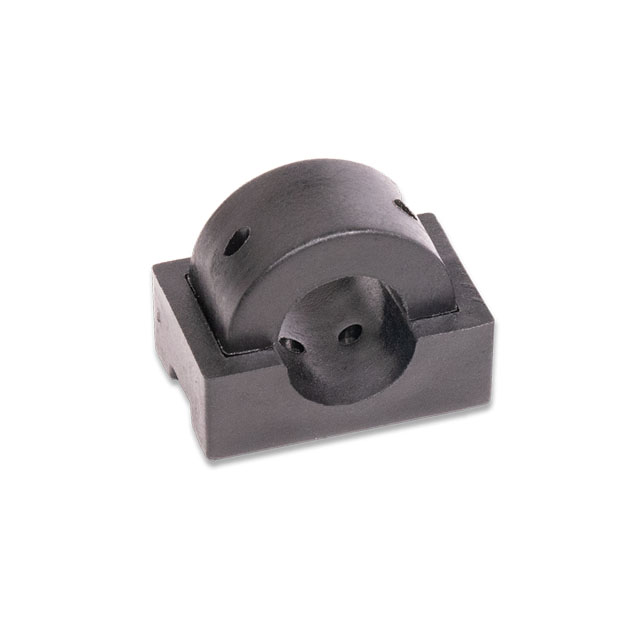

The CTS-CS-CXX-10 is a soft ferromagnetic shield with high linearity and low hysteresis, ideal for DC and AC current sensing, motor control, battery monitoring, and more. It can be paired with planar magnetic field sensors to measure currents up to ±200 A. Its hollow bottom design allows for a compact solution, and it can be easily soldered to a PCB for a secure connection.
With both off-the-shelf and customized solutions, we meet a wide range of performance needs based on our established modular design building blocks. These sensors provide a cost-effective solution for high-amperage drive motors, even with customized packaging and mounting options.
Designed using Hall-effect technology, all our sensors provide a consistent, high-performance signal in a lightweight, streamlined solution. Regardless of your board arrangement and housing requirements, our engineers can build a sensor to your concise specifications, guaranteeing it will fit your requirements.
Find a Solution
The CTS-CS-CAX-04 is a 4mm analog open-loop clamp-on current sensor module designed for non-intrusive and isolated measurement of electric currents.
The CTS-CS-CAX-10-A is a 10mm analog open-loop clamp-on current sensor module designed for non-intrusive and isolated measurement of electric currents.
The CTS-CS-CXX-04 is a 4mm clamp-on magnetic field concentrator designed for non-intrusive and isolated measurements of electric currents.
The CTS-CS-CXX-10 is a 10mm clamp-on magnetic field concentrator designed for non-intrusive and isolated measurements of electric currents.
