CTS has over 20 years of experience with non-contacting technology developing products for the automotive market and is now utilizing the same technology to develop industrial-grade rotary position sensors. The core design allows for packaging in various configurations to fit every application. Utilization of selected ICs and programming allows for the output of the required communication protocol.

These devices are ideal for applications such as wheel balancing equipment, material handling equipment, medical diagnostic equipment, controls for heavy equipment, flow valves, and a myriad of other applications where precision, reliability, reduced maintenance, and quality are key requirements.

Reach out to us with any questions.
We're happy to help.

Features
Applications
Popular Products
Technical Resources

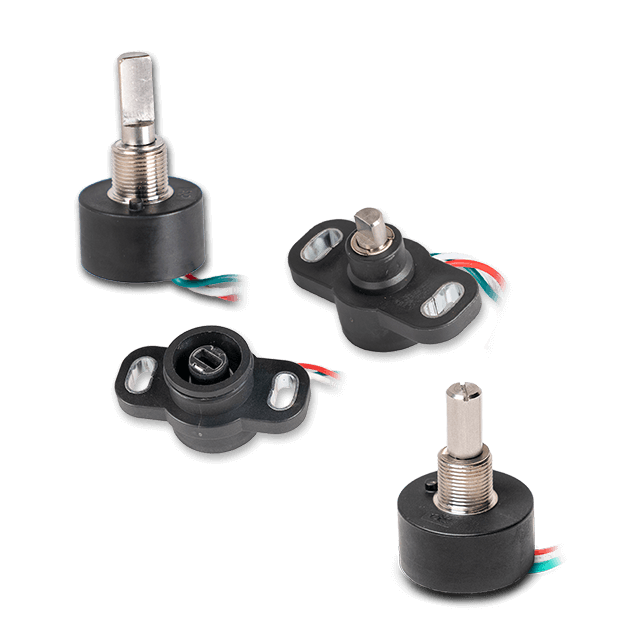

Selection of non-contacting rotary position sensors from CTS

Features

Contacting and Non-Contacting Options Available
10 to 50 Million Rotational Life Options for Extended Field Deployment
Precision Linearity & Hysteresis for Precise Settings and Repeatability
Standard Internal EMI Shielding
Wide Operating Temperature Ranges
Standard Seal Options for Humid and Dusty Environment Applications

Applications

Wheel Balancing Equipment
Material Handling Equipment
Medical Diagnostic Equipment
Controls for Heavy Equipment
Flow Valves
Applications Where Precision, Reliability, Reduced Maintenance and Quality Are Key Requirements.

Please wait while we gather your results.

Skip to Results Listing clear all

Resource Type

clear

Application Notes / Tech Briefs(8)

Brochures / Catalogs(1)

Corporate Documents(0)

Product (Family)

clear

Encoders(1)

Potentiometers(1)

Rotary Position Sensing(9)

View Results

Please wait while we gather your results.

Results Updated

9 Results ListedSkip to Filters

Selecting the Ringt Rotary Position Sensor - CTS Whitepaper

clear all

Keywords

Technology Type

clear

Contact(4)

Hall Effect(4)

Mechanical(0)

Optical(0)

View Results

Please wait while we gather your results.

Series	Technology Type	Package Size (mm)	Rotation Angle	Rotational Life (Cycles)	Linearity	Voltage	Data Sheet	CAD Files	ROHS	Reach Statement

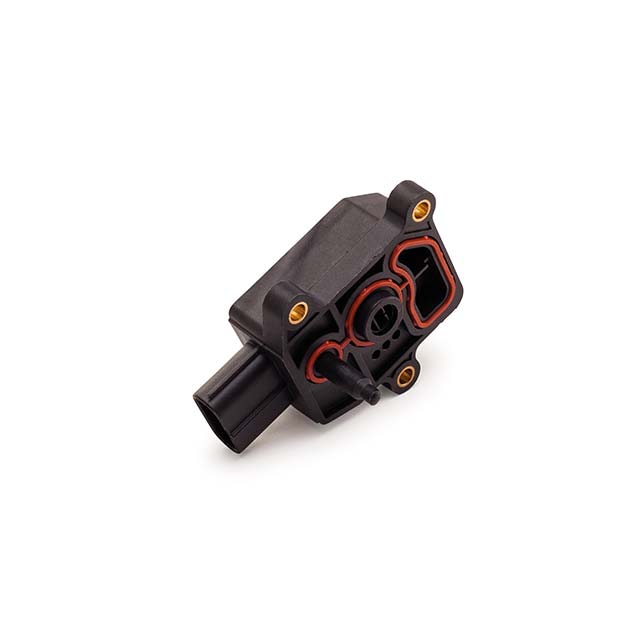

003	Contact	57 x 35	105°	2M	±2.0% (point slope linearity)	5.0 VDC	Data Sheet

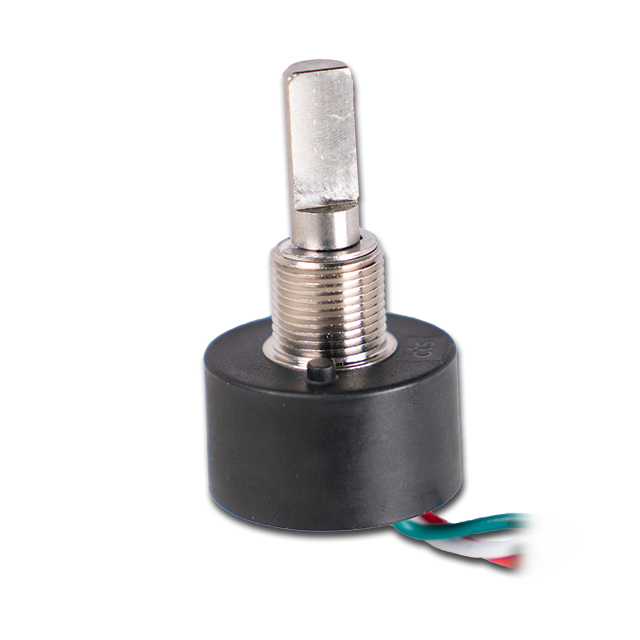

285C	Hall Effect	22	260°, 310°, 360°	10M	±0.5%, ±0.25%	3.3 VDC5.0 VDC	Data Sheet	CAD Files	ROHS	Reach Statement

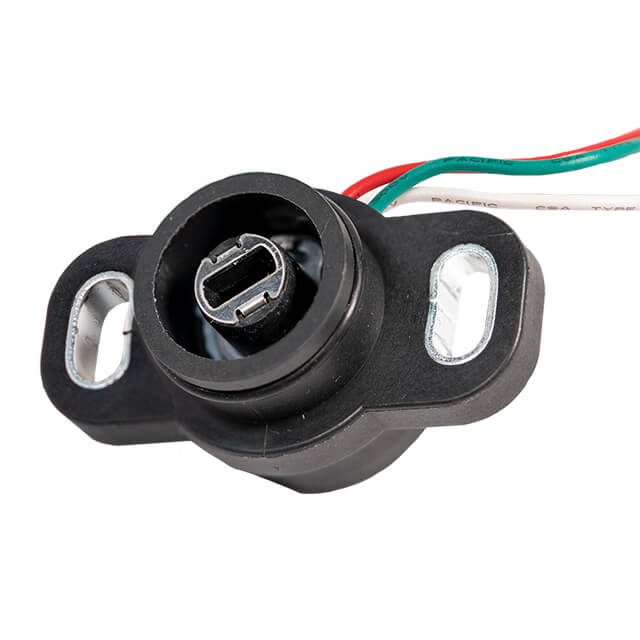

285N	Hall Effect	45 x 22	125°, 260°, 310°, 360°	10M	±0.5%, ±0.25%	3.3 VDC5.0 VDC	Data Sheet	CAD Files	ROHS	Reach Statement

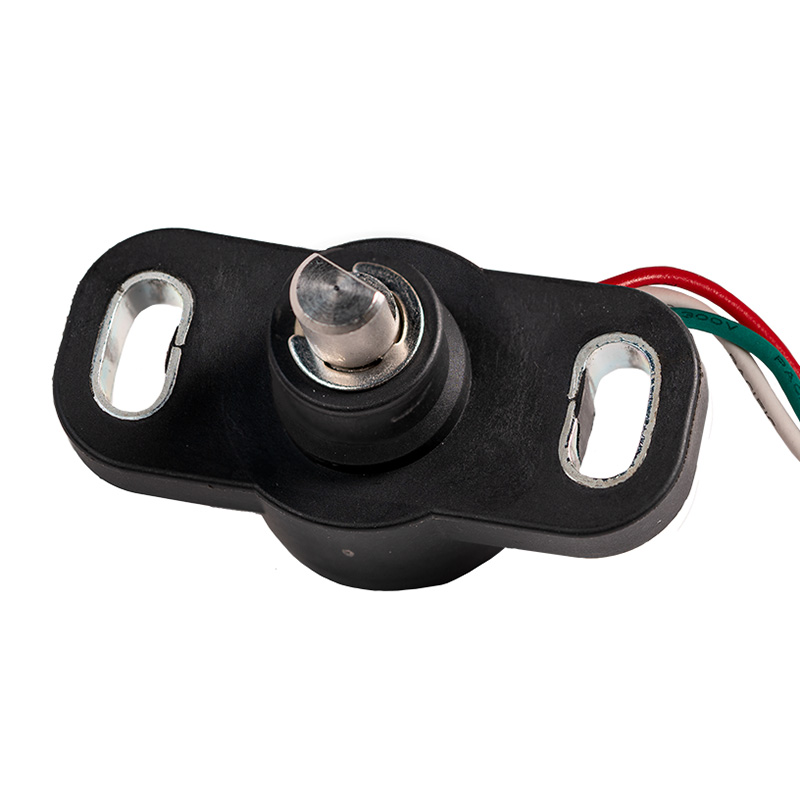

285S	Hall Effect	45 x 26	125°, 260°, 310°, 360°	10M	±0.5%, ±0.25%	3.3 VDC5.0 VDC	Data Sheet	CAD Files	ROHS	Reach Statement

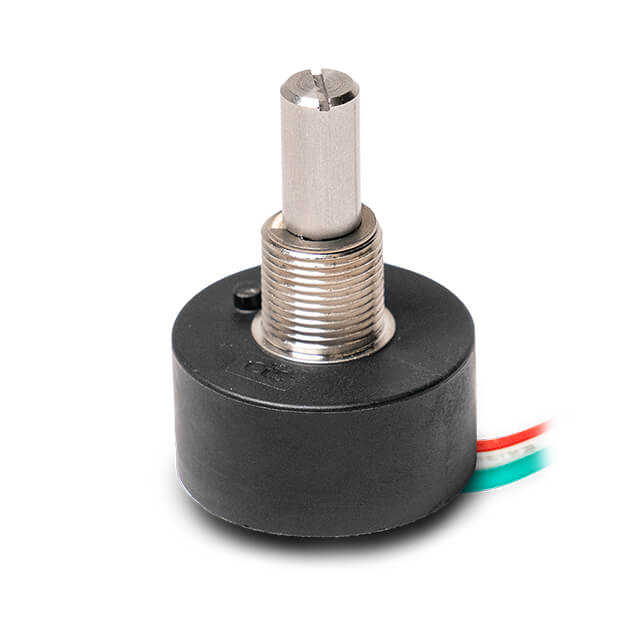

286	Hall Effect	25	360° to 3600°	10M	±0.5%	5.0 VDC	Data Sheet	CAD Files	ROHS	Reach Statement

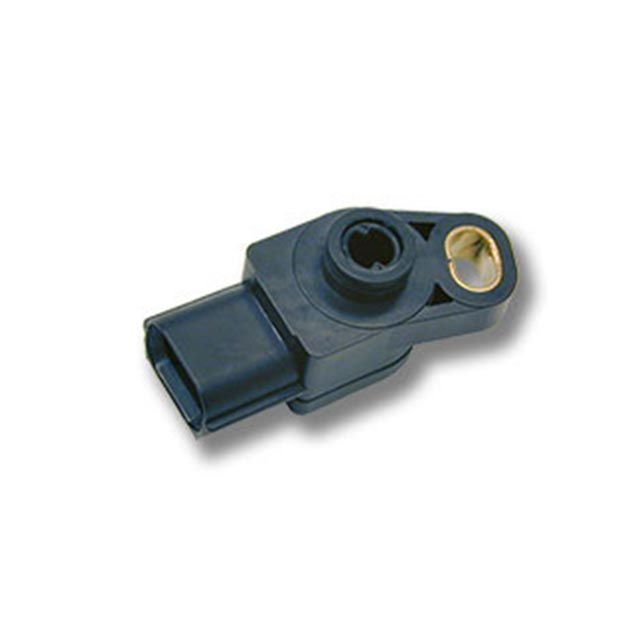

500	Contact	57 x 35	122°	>1M	±2.0% (point slope linearity)	5.0 - 10.0 VDC	Data Sheet
525	Contact	57 x 35	97°	>1M	Absolute scale over full range +- 2.0%	5.0 - 10.0 VDC	Data Sheet

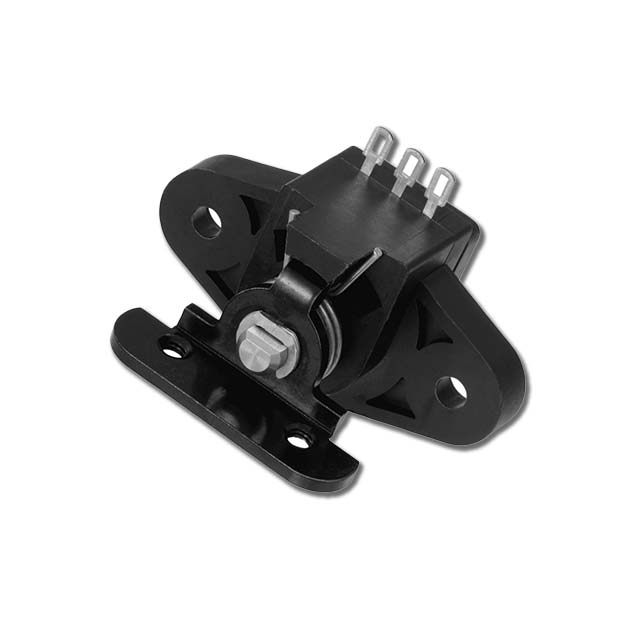

576	Contact	57 x 35	300° - 360°	2M	Absolute scale over full range +- 2.0%	5.0 VDC	Data Sheet
