TCXO - VCTCXO

CTS produces the highest frequency temperature-compensated crystal oscillators (TCXOs) available in the industry. With superior phase noise and low current consumption, our TCXOs enable customers to achieve the highest performance for innovative designs.

Reach out to us with any questions.
We're happy to help.

Contact Us

Features
Applications
Popular Products
Technical Resources

Three CTS TXCO products on white background

Ultra-low Phase Noise and Jitter
Stratum 3 Performance; ±4.6ppm overall, ±0.28ppm over -40°C to +105°C
Clipped Sinewave, HCMOS, LVCOMS Outputs
High-Frequency Options up to 1,000MHz
Frequency Compensation
- Temperature Compensation Standard
- Optional Voltage Control Pin [VCTCXO]
Smallest size 2.0mm x 1.6mm, up to Frequency options available up to 52.0MHz
Real Time Cock Reference @ 32.768kHz

Optical Networking Equipment, including SONET/SDH/ATM Standards
10G, 40G, 100G and SyncE Ethernet Protocols
Femtocells, Base Stations and Wireless Infrastructures
Medical Imaging and Other Healthcare Monitoring Devices
GPS Navigation and Transportation Fleet Management
Military Communication and Radar Applications
Energy Monitoring Equipment; Smart Electric, Water and Gas Meters
Test and Measurement Instrumentation
Digital Audio & Video Recording
Portable Electronic Equipment

Please wait while we gather your results.

Results Updated

1 Results Listed

Frequency Control Products - TCXO Brochure

Brochures / Catalogs

Please wait while we gather your results.

Results Updated

21 Results Listed

Skip to Filters

Series	Output	Frequency Range (MHz)	Frequency Stability (PPM)	Package (mm)	Voltage (V)	Temperature Range (C)	Data Sheet	ROHS	Reach Statement
516	Clipped Sine Wave	13 - 52	±2.5±2.0±1.5±1.0±0.5	2.0x1.6 SMD	1.8V2.5V2.8V3.0V3.3V	-40°–85°-30°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
517	HCMOS	9.5 - 60	±2.5±2.0	2.0x1.6 SMD	1.8V2.5V2.8V3.0V3.3V	-40°–85°-30°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
520	Clipped Sine Wave	13 - 52	±2.5±2.0±1.5±1.0±0.5	2.5x2.0 SMD	1.8V2.5V2.8V3.0V3.3V	-40°–85°-30°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
521	HCMOS	9.5 - 60	±2.5±2.0	2.5x2.0 SMD	1.8V2.5V2.8V3.0V3.3V	-40°–85°-30°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
525	Clipped Sine Wave	13 - 52	±2.5±2.0±1.5±1.0±0.5	3.2x2.5 SMD	1.8V2.5V2.8V3.0V3.3V	-40°–85°-30°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
526	HCMOS	9.5 - 60	±2.5±2.0	3.2x2.5 SMD	1.8V2.5V2.8V3.0V3.3V	-40°–85°-30°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
532	Clipped Sine Wave	13 - 52	±2.5±2.0±1.5±1.0±0.5	5.0x3.2 SMD	1.8V2.5V2.8V3.0V3.3V	-40°–85°-30°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
533	HCMOS	9.5 - 60	±2.5±2.0	5.0x3.2 SMD	1.8V2.5V2.8V3.0V3.3V	-40°–85°-30°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
535	Clipped Sine Wave	10 - 50	±0.50±0.28±0.10	5.0x3.2 SMD	3.3V	-40°–85°-40°–105°-10°–70°	Data Sheet	ROHS	Reach Statement
536	HCMOS	10 - 50	±0.50±0.28±0.10	5.0x3.2 SMD	3.3V	-40°–85°-40°–105°-10°–70°	Data Sheet	ROHS	Reach Statement
578	Clipped Sine Wave	5 - 52	MISSING FILTER OR NOT TAGGED	7.0x5.0 SMD	2.5V3.0V3.3V	-40°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
579	HCMOS	5 - 52	MISSING FILTER OR NOT TAGGED	7.0x5.0 SMD	2.5V3.0V3.3V	-40°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
580	Clipped Sine Wave	10 - 52	±0.50±0.28±0.20±0.10±0.05	5.0x3.2 SMD	2.5V3.0V3.3V	-40°–85°-30°–85°-20°–70°-10°–60°0°–50°	Data Sheet	ROHS	Reach Statement
581	HCMOS	10 - 52	±0.50±0.28±0.20±0.10±0.05	5.0x3.2 SMD	2.5V3.0V3.3V	-40°–85°-30°–85°-20°–70°-10°–60°0°–50°	Data Sheet	ROHS	Reach Statement
585	Clipped Sine Wave	5 - 52	±2.5±2.0±1.5±1.0±0.5	7.0x5.0 SMD	2.5V3.0V3.3V	-40°–85°-30°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
586	HCMOS	5 - 52	±2.5±2.0±1.5±1.0±0.5	7.0x5.0 SMD	2.5V3.0V3.3V	-40°–85°-30°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
588	Clipped Sine Wave	5 - 52	MISSING FILTER OR NOT TAGGED	7.0x5.0 SMD	2.5V3.0V3.3V	-40°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
589	HCMOS	5 - 52	MISSING FILTER OR NOT TAGGED	7.0x5.0 SMD	2.5V3.0V3.3V	-40°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
591	LVCMOS	10 - 50	±0.28±0.1	14.6x9.6 SMD	3.3V	-40°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
TT32	HCMOS	0.032768	±5	3.28x2.50 SMD	1.8V2.5V3.0V3.3V	-40°–85°	Data Sheet	ROHS	Reach Statement

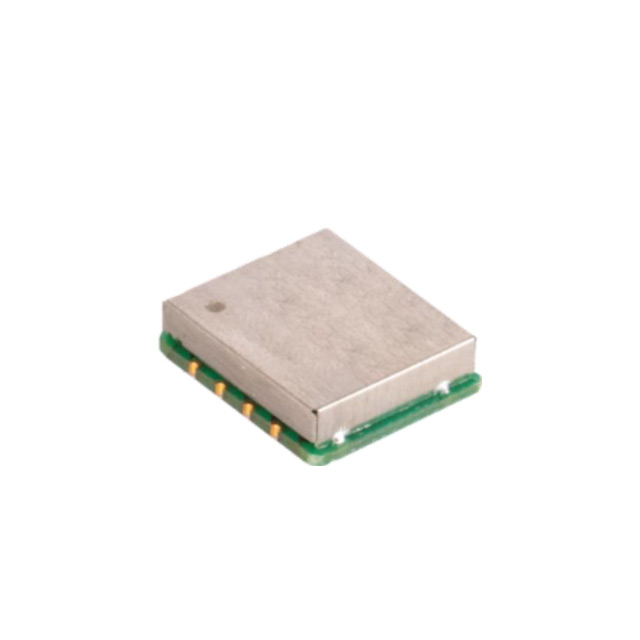

VF901723	LVCMOS	38.400	±0.28	14x13 SMD	3.3V	-40°–85°	Data Sheet	ROHS	Reach Statement
