TT32

TCXO/VCTCXO TT32

HCMOS TCXO @ 32.768kHz

CTS Model TT32 is a low cost, small size, HCMOS Temperature Compensated Crystal Oscillator [TCXO] operating at 32.768kHz. Employing IC technology that delivers low current consumption, TT32 provides a Real Time Clock reference with excellent stability and low phase noise/jitter performance.

Series Resources

  • 32.768kHz Frequency Reference
  • Low Power Consumption, 3.7uA Maximum @ +3.3V
  • Ceramic Surface Mount Package
  • Fundamental Crystal Design
  • +1.8V, +2.5V, +3.0V or +3.3V Operating Voltage
  • Stability ±5ppm
  • Operating Temperature Range -40°C to +85°C
  • Tape and Reel Packaging, EIA-481
  • Real Times Clock Reference
  • Smart Metering
  • Portable Electronics
  • Timing Synchronization
  • GPS Receivers
  • Data Loggers
  • Telematics
  • Battery Powered Applications
  • Industrial Controls & Automation
  • Wireless Communications
  • Medical Devices
  • IoT

Download the Frequency Code Table

Specifications
Frequency Range (MHz)0.032768
Frequency Stability (PPM)±5
Package (mm)3.28x2.50 SMD
Voltage (V)1.8V / 2.5V / 3.0V / 3.3V

Man and woman team smiling while leaning on distribution line.

Where to Buy

CTS components are stocked and sold through a global network of distributors & sales representatives. Select your preferred partner in the link below.

Where to Buy

Related Products

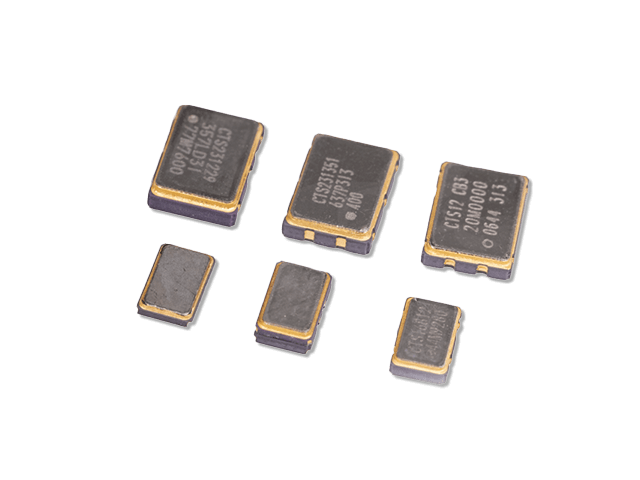

CTS Clock oscillators on white background
