Tactile Switches

Tactile switches from CTS combine reliability with excellent, customizable feeback. They see widespread use in human-machine-interface applications where the user applies force to the push button for circuit control and selection. Our product portfolio comes with options for size, actuating force and height and extended life cycles of up to five million activations.

Reach out to us with any questions.
We're happy to help.

Contact Us

Features
Applications
Featured Products
Technical Resources

Six cts tactile switches on transparent background

Customizable Tactile Feedback (Actuation Force and Height)
Life Cycles up to Five Million Activations
IP67 Seal on Select Products
Standard and Custom Cap Options Available on Request
Custom Markings
Surface Mount or Through-Hole Configurations

Human-Machine-Interface Applications
Home Automation
Medical Devices
Audio Visual Equipment
Consumer/IT Electronics
Telecommunication Devices
Instrumentation Equipment

Please wait while we gather your results.

Results Updated

4 Results Listed

CTS Switch Solutions

Brochures / Catalogs

Thumbnail of PDF Document with home illustration with green icons on cover

How Switches Influence Building and Home Automation

Application Notes / Tech Briefs

CTS Switches in Medical Devices - Application Note

How Switches Influence Medical Devices

Application Notes / Tech Briefs

Switches in Industrial Automation

Abstracts / White Papers, Application Notes / Tech Briefs

Please wait while we gather your results.

Results Updated

41 Results Listed

Skip to Filters

Series	Actuator Type	Actuation Direction	Sealing	Terminals	Lifecycle	Dimensions (mm)	Datasheet	RoHS	REACH
222A	Standard	SideVertical	n/a	Surface Mount Gull WingThrough-hole	200,000 to 1,000,000	6.2 x 6.2	Datasheet	RoHS	REACH

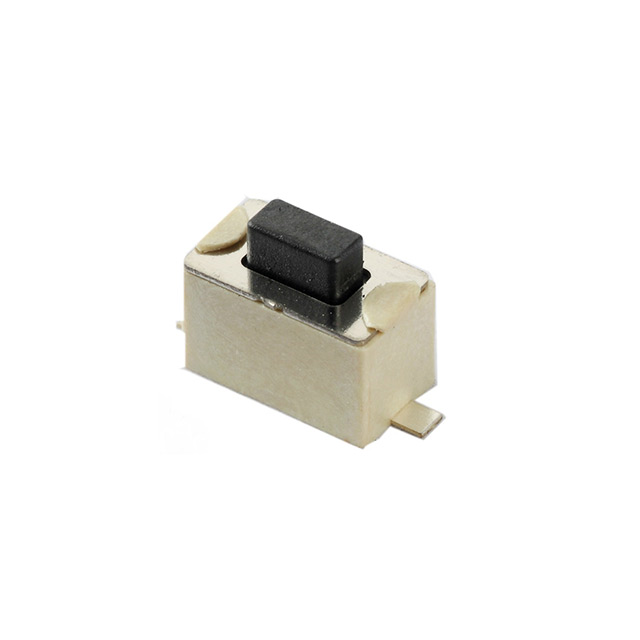

222B	Standard	Vertical	IP67	Surface Mount Gull WingSurface Mount J-Bend	30,000 to 50,000	6.0 x 3.5	Datasheet	RoHS	REACH

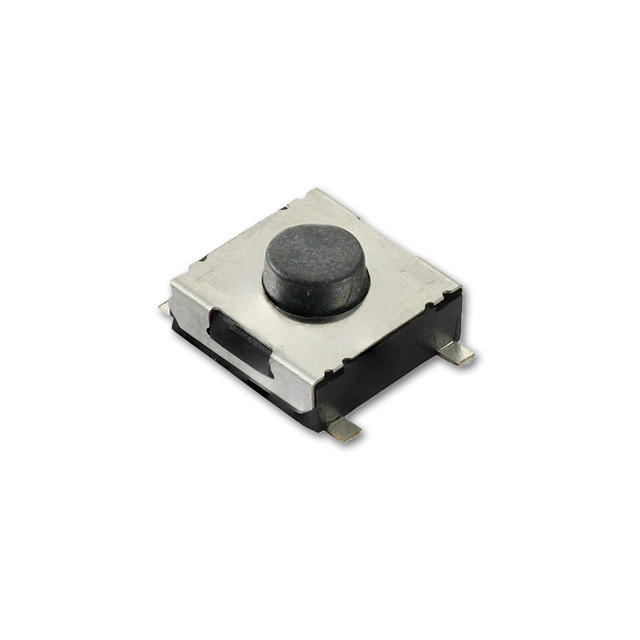

222C	Standard	Vertical	n/a	Surface Mount Gull WingSurface Mount J-Bend	500,000 to 1,000,000	6.2 x 6.2	Datasheet	RoHS	REACH

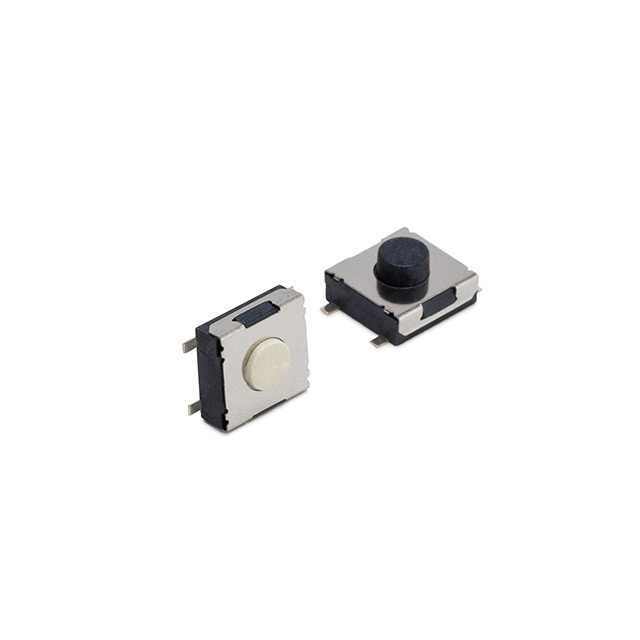

222D	Standard	Vertical	n/a	Surface Mount Gull WingSurface Mount J-Bend	200,000 to 1,000,000	6.2 x 6.2	Datasheet	RoHS	REACH

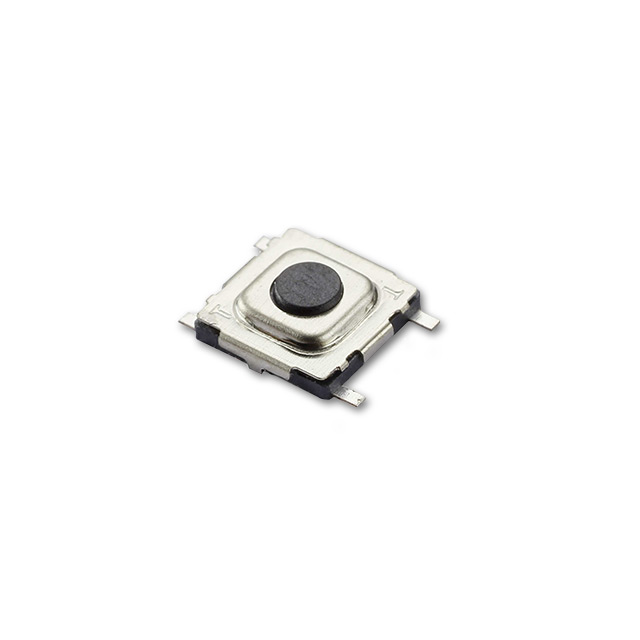

222E	Standard	Vertical	n/a	Surface Mount Gull WingSurface Mount J-Bend	200,000 to 1,000,000	5.0 x 5.0	Datasheet	RoHS	REACH

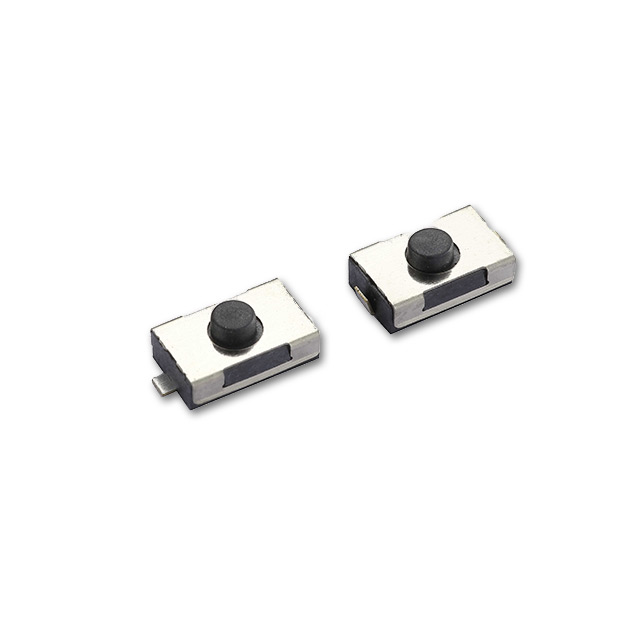

222G	Standard	Vertical	n/a	Surface Mount Gull WingSurface Mount J-Bend	100000	6.0 x 3.8	Datasheet	RoHS	REACH

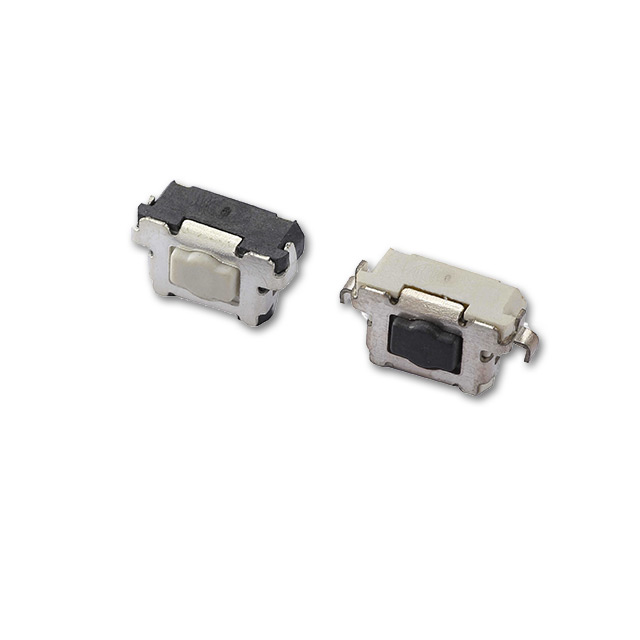

222H	Standard	Side	n/a	Surface Mount Gull Wing	500,000 to 1,000,000	6.2 x 3.5	Datasheet	RoHS	REACH

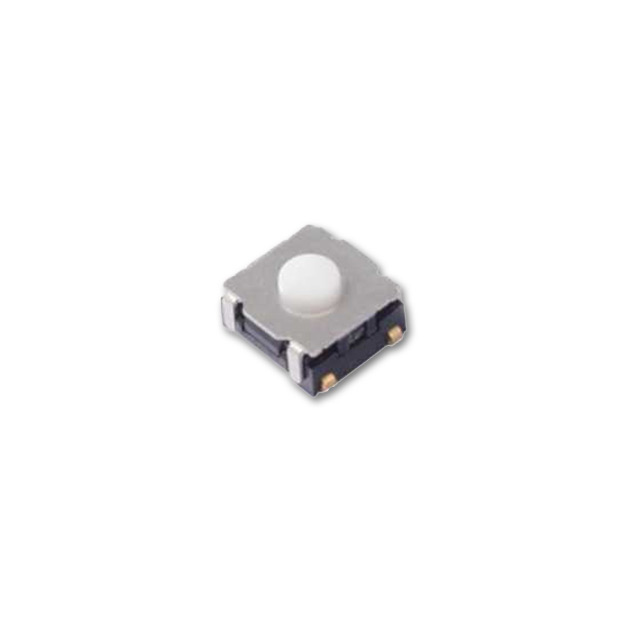

222J	Standard	Vertical	IP67	Surface Mount Gull WingSurface Mount J-Bend	300,000 to 1,000,000	6.2 x 6.2	Datasheet	RoHS	REACH

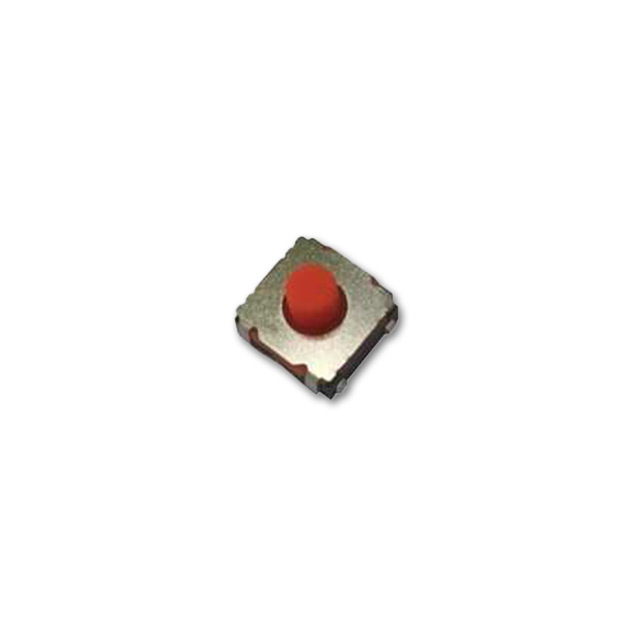

222K	Standard	Vertical	IP67	Surface Mount Gull WingSurface Mount J-Bend	300,000 to 5,000,000	6.2 x 6.2	Datasheet	RoHS	REACH

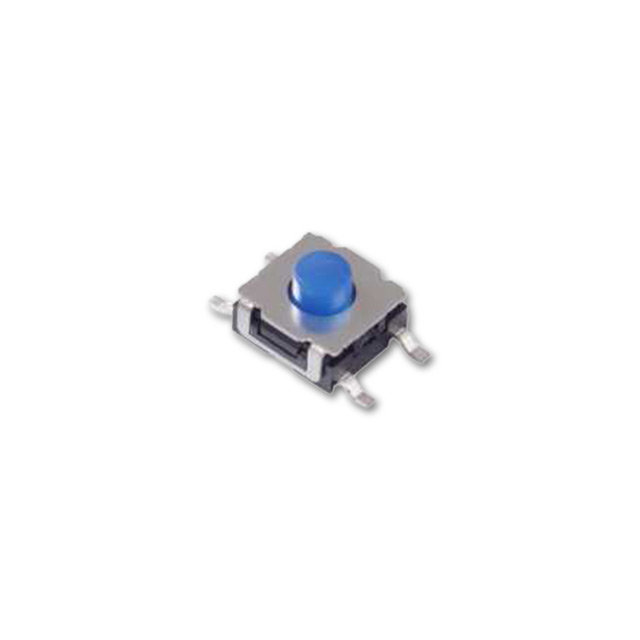

222L	Standard	Vertical	IP67	Surface Mount Gull WingSurface Mount J-Bend	300000	6.2 x 6.2	Datasheet	RoHS	REACH

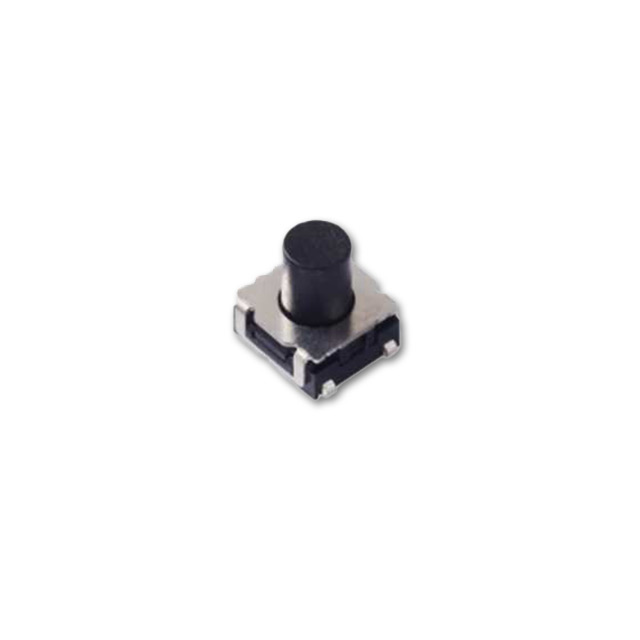

222M	Standard	Vertical	IP57	Surface Mount Gull WingSurface Mount J-Bend	100000	6.2 x 6.2	Datasheet	RoHS	REACH

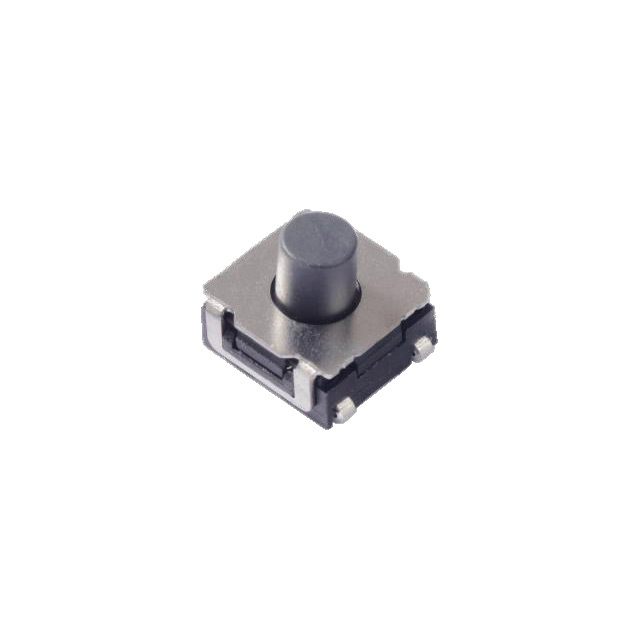

222P	Standard	Vertical	IP67	Surface Mount Gull WingSurface Mount J-Bend	100000	6.2 x 6.2	Datasheet	RoHS	REACH

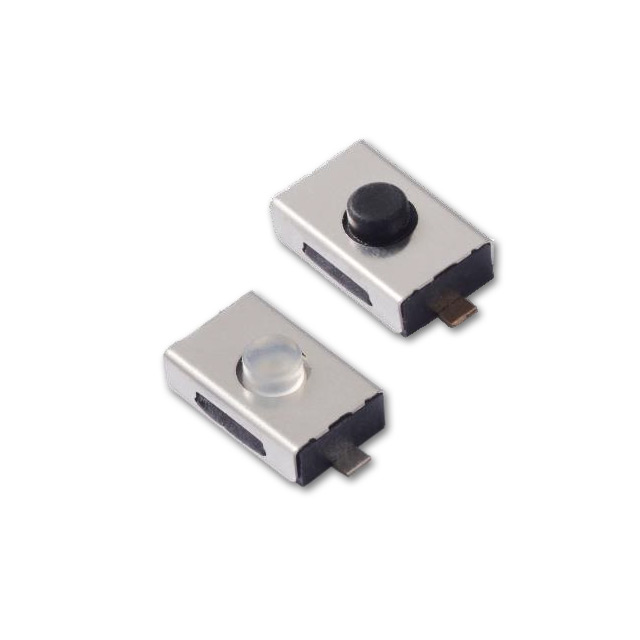

222S	Standard	Vertical	IP57	Surface Mount Gull Wing	100000	6.0 x 3.8	Datasheet	RoHS	REACH

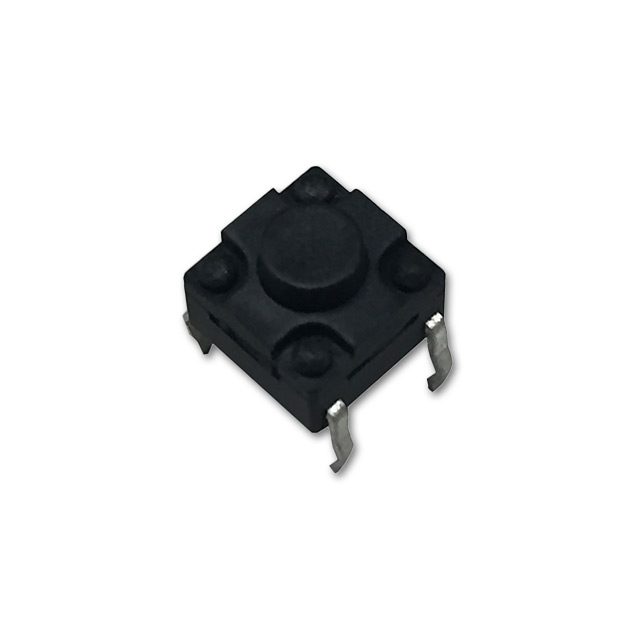

222U	Standard	Vertical	IP67	Through-hole	50000	6.1 x 6.1	Datasheet	RoHS	REACH

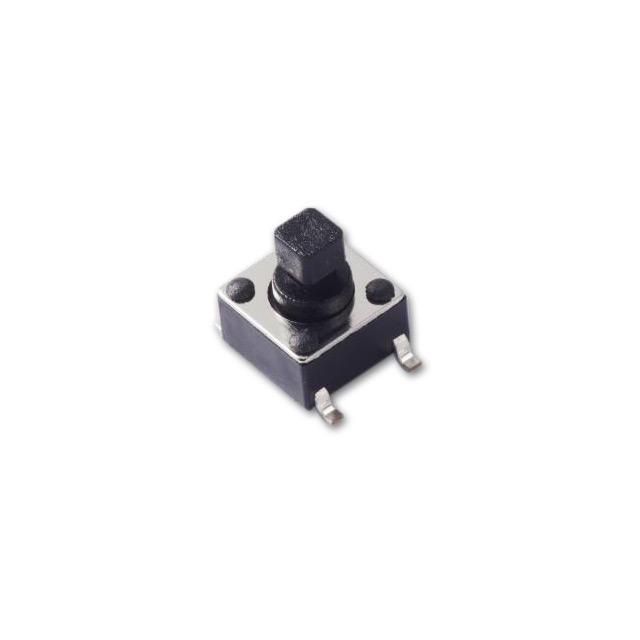

222V	Standard	Vertical	n/a	Surface Mount Gull Wing	60,000 to 100,000	6.0 x 6.0	Datasheet	RoHS	REACH

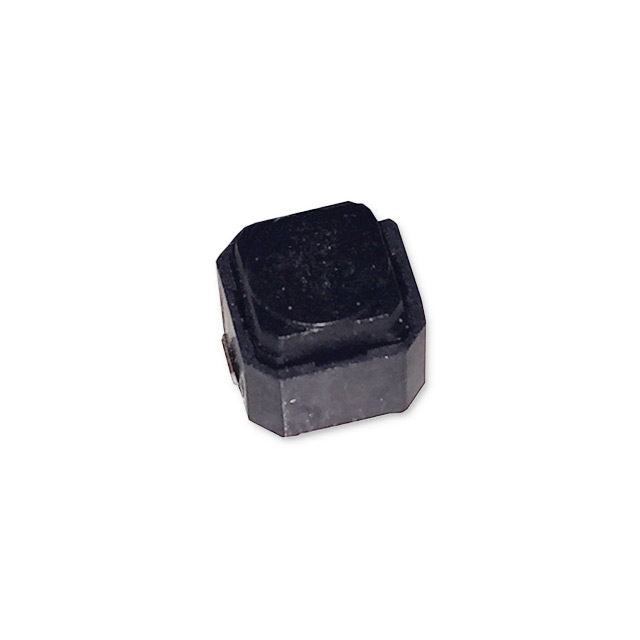

222W	Standard	Vertical	n/a	Surface Mount J-Bend	100000	6.0 x 6.0	Datasheet	RoHS	REACH

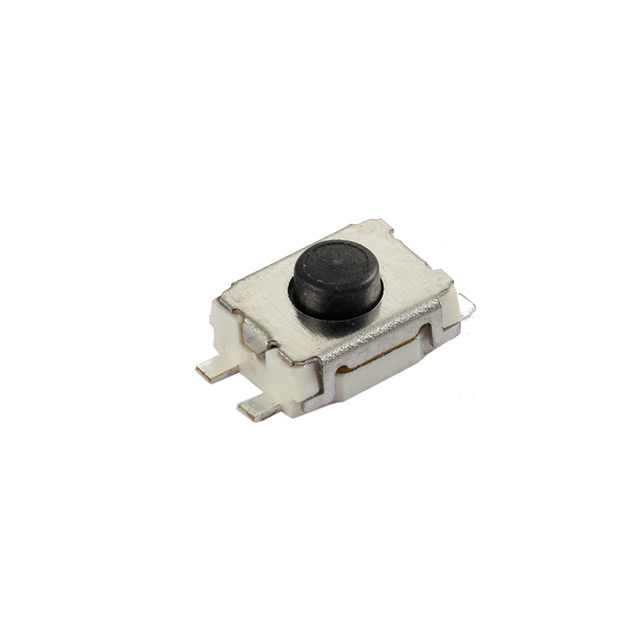

223A	Standard	Vertical	n/a	Surface Mount Gull WingSurface Mount J-Bend	100,000 to 300,000	4.7 x 3.5	Datasheet	RoHS	REACH

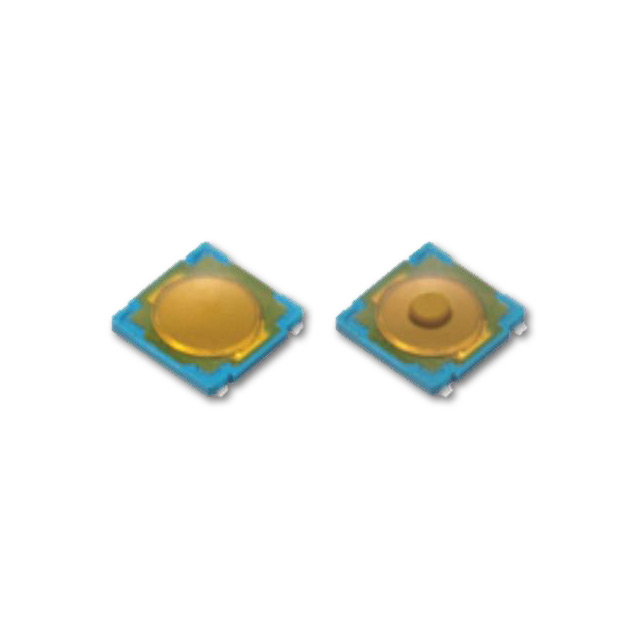

223B	Standard	Vertical	n/a	Surface Mount Gull Wing	200,000 to 1,000,000	4.5 x 4.5	Datasheet	RoHS	REACH

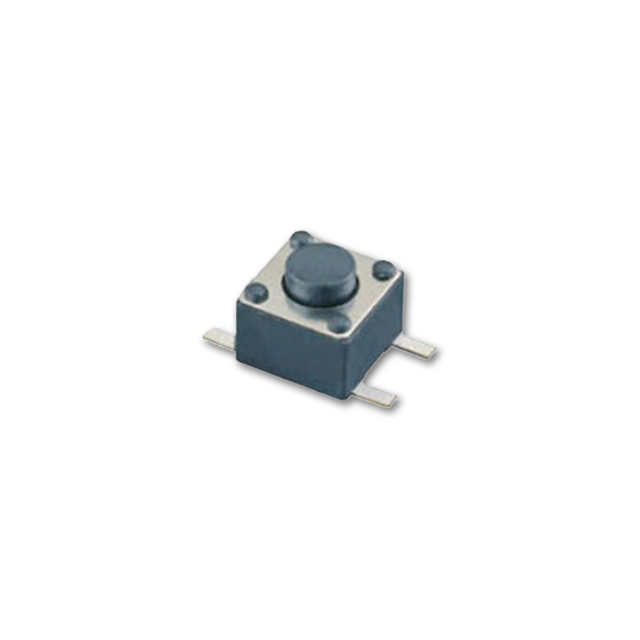

223C	Standard	Vertical	n/a	Surface Mount Gull Wing	1000000	4.5 x 4.5	Datasheet	RoHS	REACH

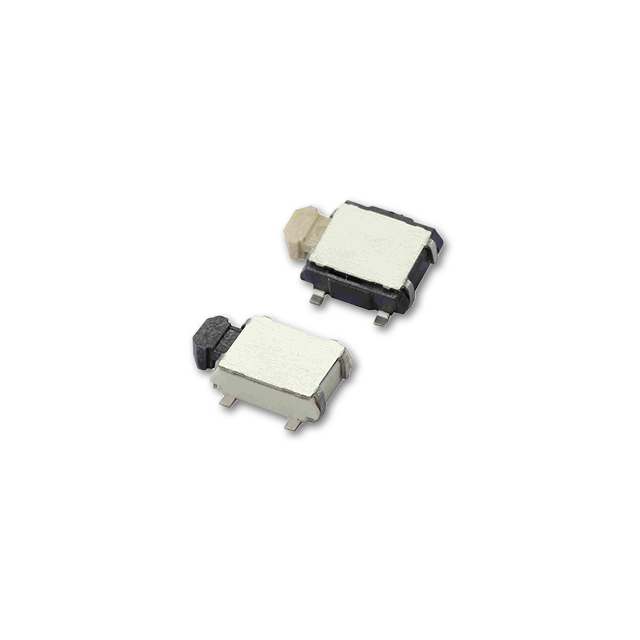

223D	Standard	Side	n/a	Surface Mount Gull Wing	50000	5.6 x 5.0	Datasheet	RoHS	REACH

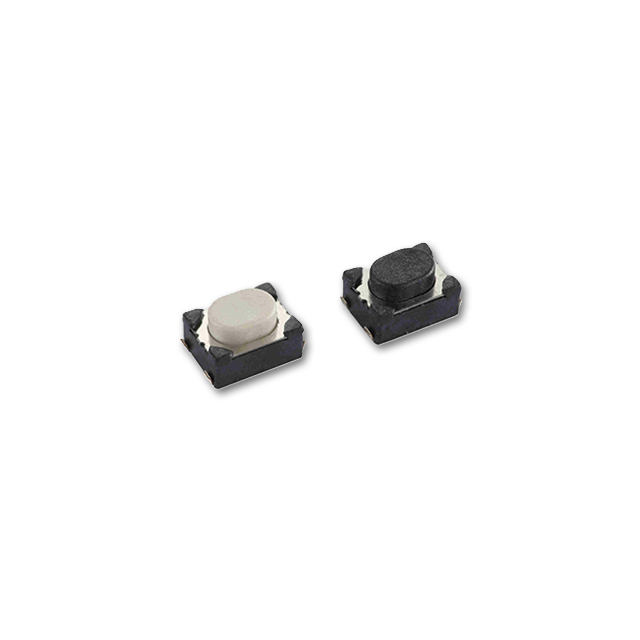

223E	Standard	Vertical	n/a	Surface Mount J-Bend	100,000 to 500,000	4.2 x 3.2	Datasheet	RoHS	REACH
223G	Standard	Side	n/a	Surface Mount	200000	4.8 x 3.0	Datasheet	RoHS	REACH

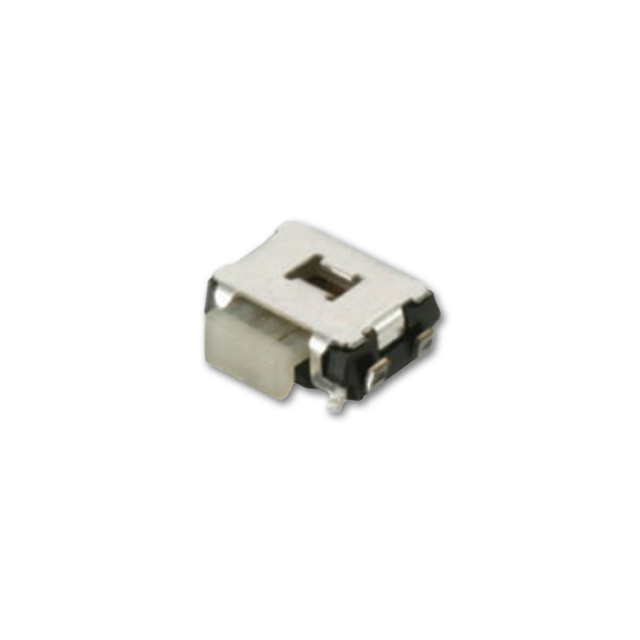

223H	Standard	Side	n/a	Surface Mount Gull WingSurface Mount J-Bend	100,000 to 200,000	4.7 x 4.5	Datasheet	RoHS	REACH

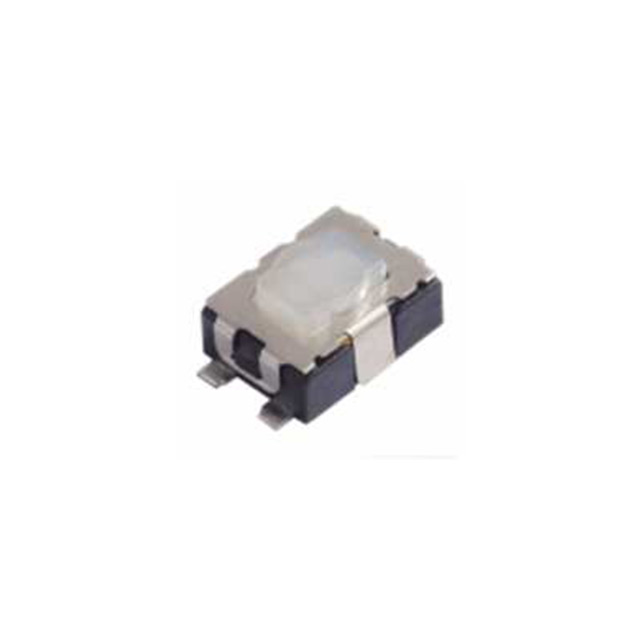

223J	Standard	Vertical	IP67	Surface Mount Gull Wing	150,000 to 200,000	4.2 x 2.8	Datasheet	RoHS	REACH

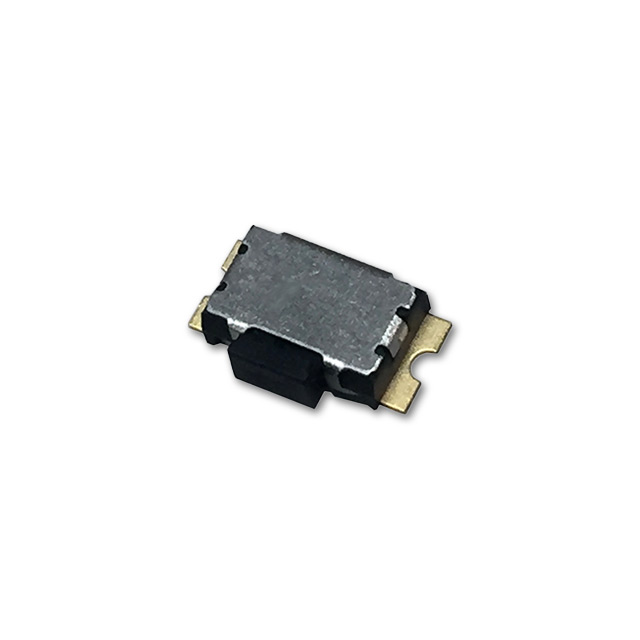

223L	Standard	Side	n/a	Surface Mount Gull Wing	100000	5.5 x 3.1	Datasheet	RoHS	REACH

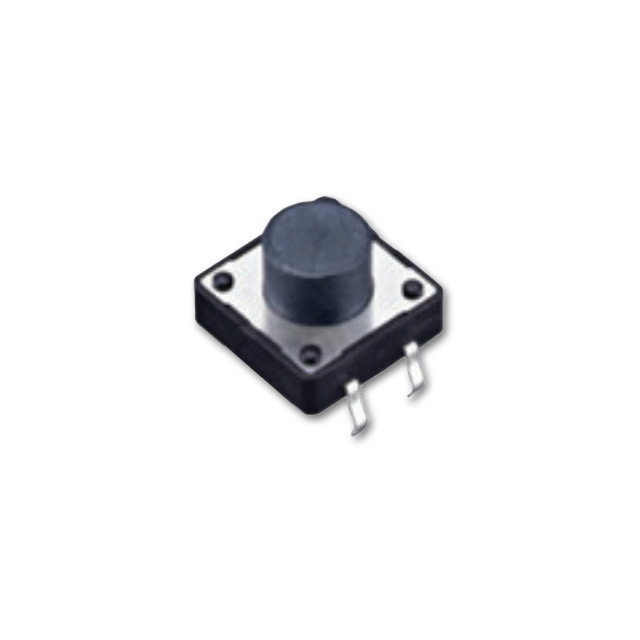

224A	Standard	Vertical	n/a	Surface Mount Gull WingThrough-hole	300,000 to 500,000	12.0 x 12.0	Datasheet	RoHS

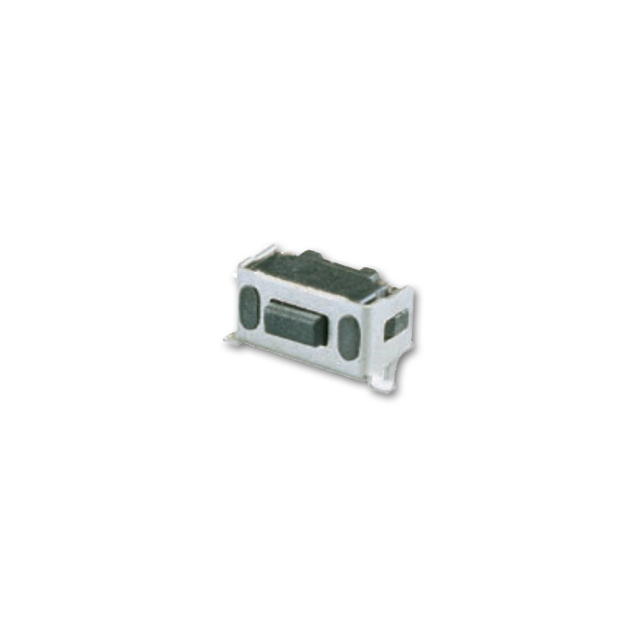

225A	Standard	Side	n/a	Surface Mount J-Bend	50,000 to 100,000	7.3 x 4.3	Datasheet	RoHS

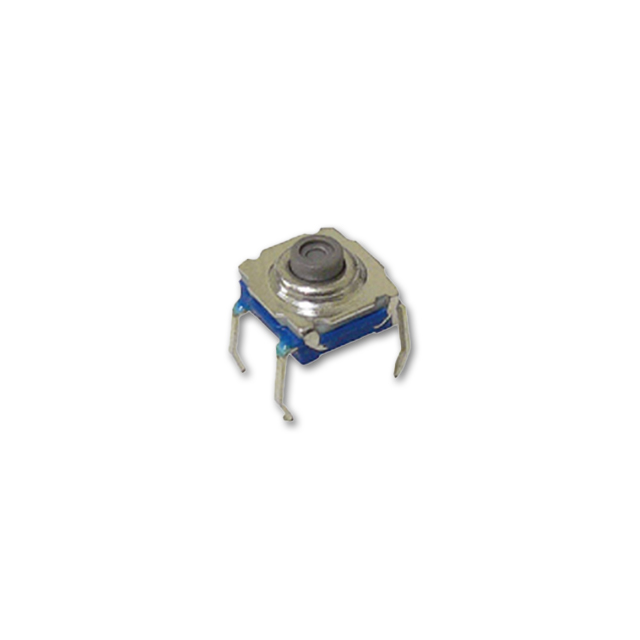

225C	Standard	Vertical	IP67	Through-hole	100000	7.2 x 7.2	Datasheet	RoHS	REACH
225F	Standard	Vertical	IP67	Surface Mount Gull Wing	100000	7.2 x 7.2	Datasheet	RoHS

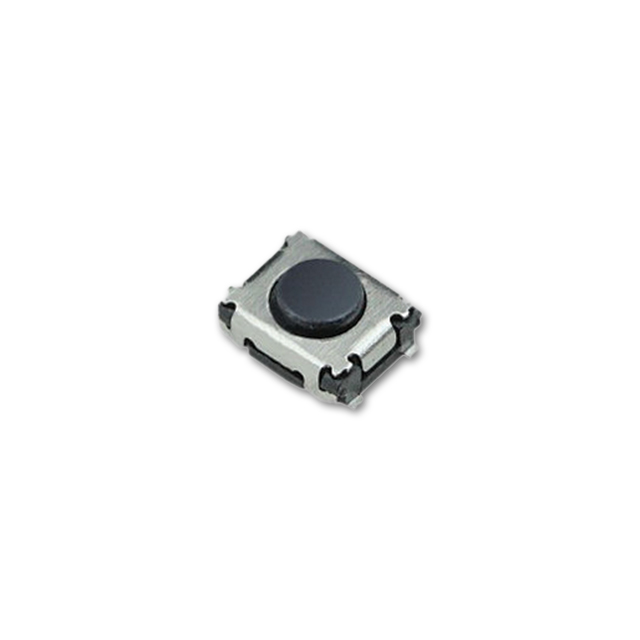

226A	Standard	Vertical	n/a	Surface Mount Gull Wing	200,000 to 500,000	3.0 x 2.6	Datasheet	RoHS

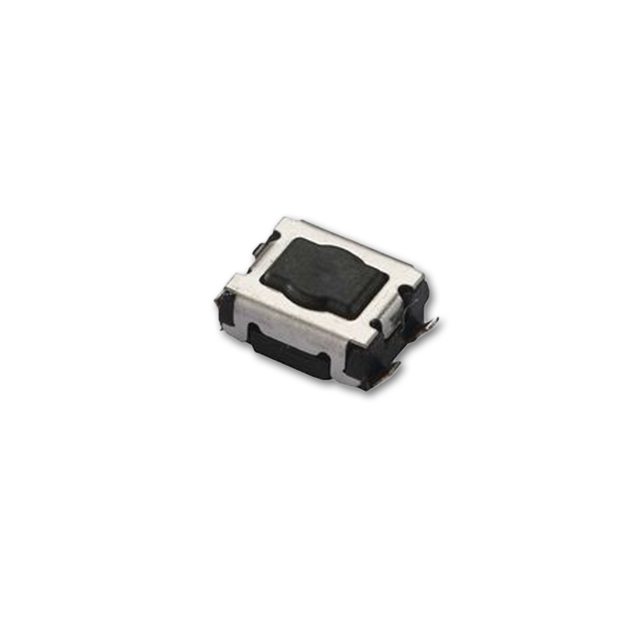

226B	Standard	Vertical	n/a	Surface Mount J-Bend	100,000 to 1,000,000	3.5 x 2.9	Datasheet	RoHS

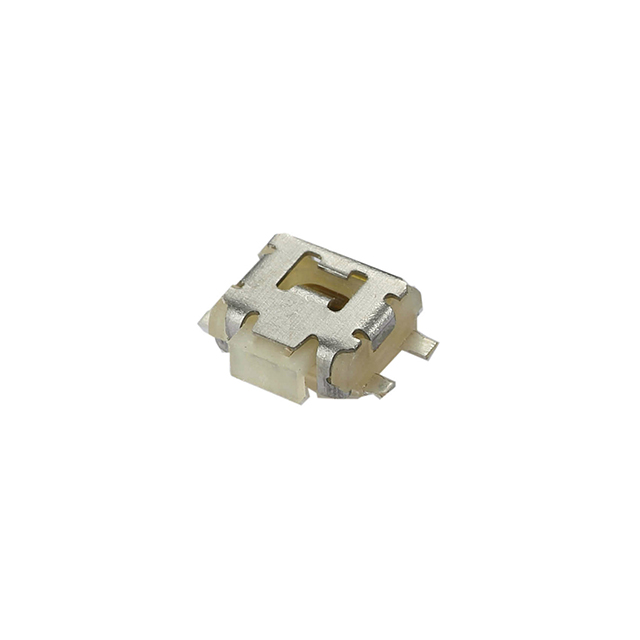

226E	Standard	Side	n/a	Surface Mount Gull Wing	100000	3.5 x 2.9	Datasheet	RoHS

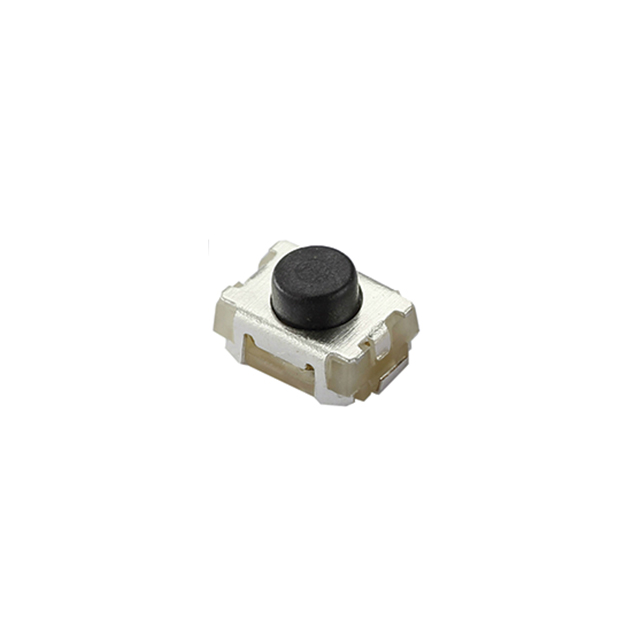

226H	Standard	Vertical	n/a	Surface Mount J-Bend	100,000 to 200,000	3.9 x 2.9	Datasheet	RoHS

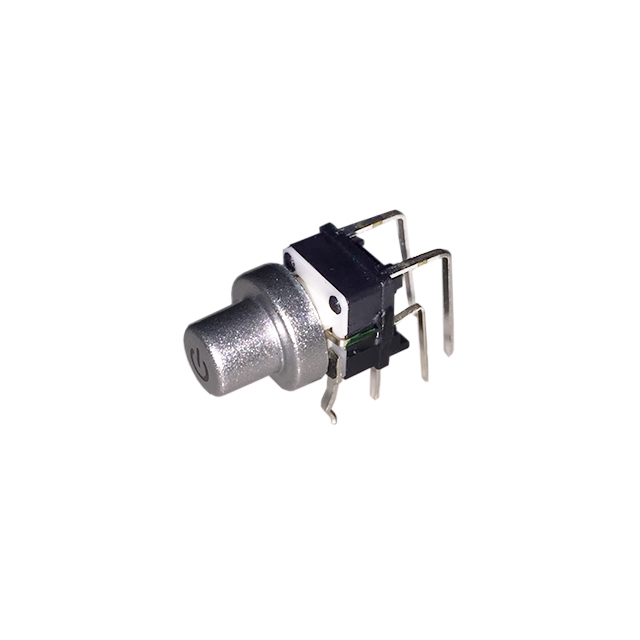

228A	Single Color Illumination	Vertical	n/a	Surface Mount Gull WingThrough-hole	100000	7.2 x 6.8	Datasheet	RoHS	REACH
228B	Single Color Illumination	Vertical	n/a	Surface Mount Gull WingThrough-hole	100000	6.0 x 6.0	Datasheet	RoHS	REACH

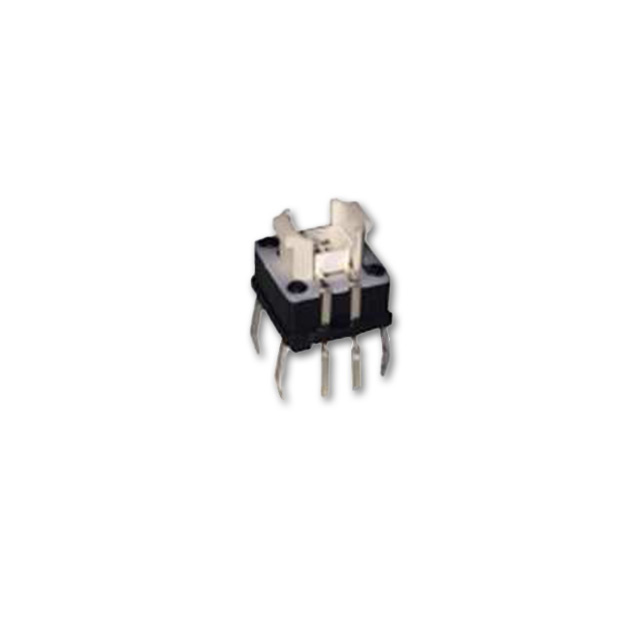

228C	Single, Bi, Tri-Color Illumination	Vertical	n/a	Surface Mount Gull WingThrough-hole	100000	7.2 x 6.8	Datasheet	RoHS	REACH

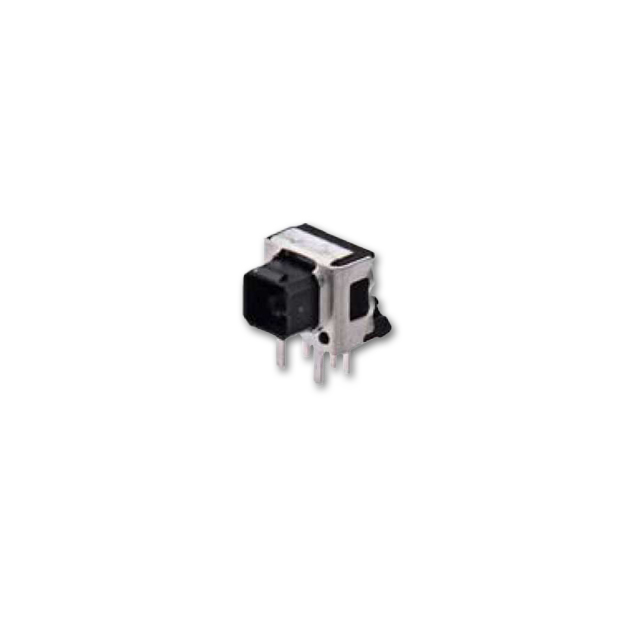

228D	Single Color Illumination	Side	n/a	Surface Mount Gull WingThrough-hole	100000	6.8 x 5.8	Datasheet	RoHS	REACH

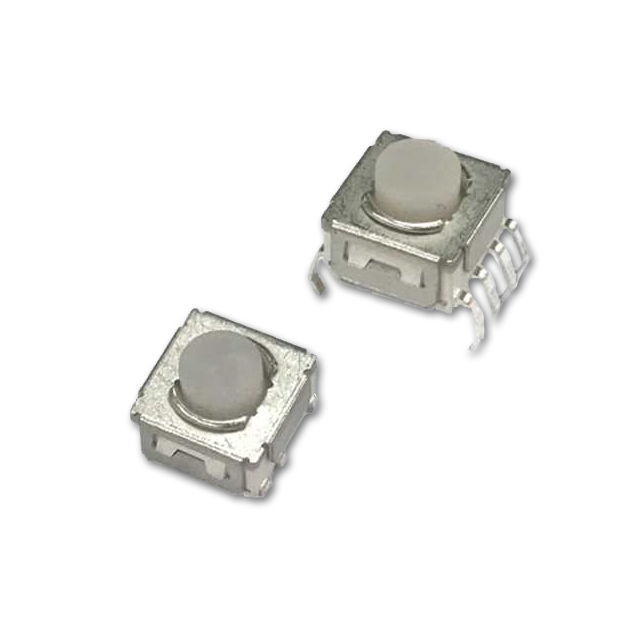

228E	Single or Tri-Color Illumination	SideVertical	IP67	Surface Mount Gull WingSurface Mount J-BendThrough-hole	100000	7.2 x 6.8	Datasheet	RoHS	REACH

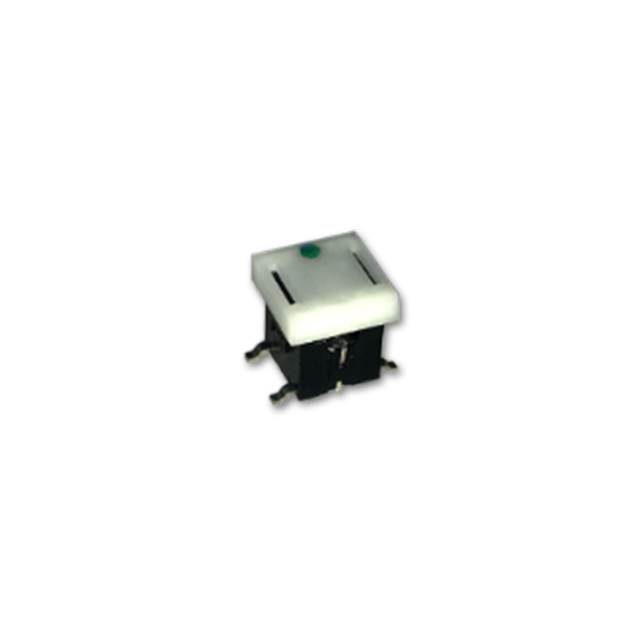

228F	Single or Tri-Color Illumination	SideVertical	IP67	Surface Mount Gull WingThrough-hole	100,000 to 500,000	7.2 x 7.0	Datasheet	RoHS	REACH

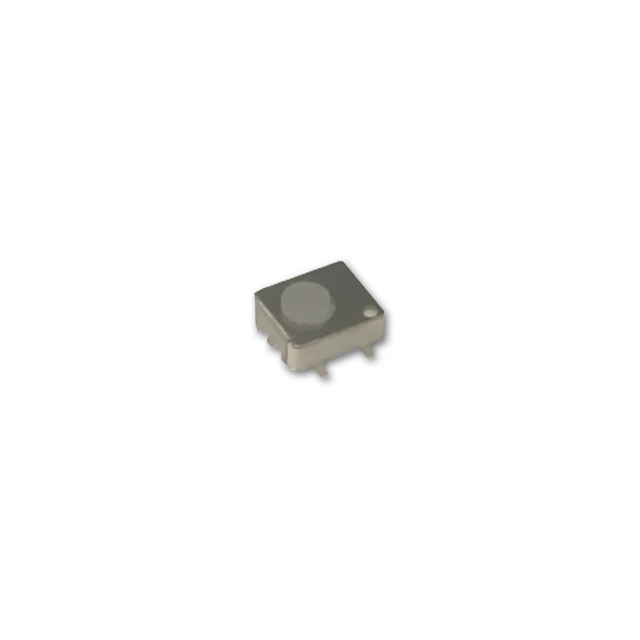

228G	Single or Tri-Color Illumination	Vertical	IP67	Surface Mount Gull Wing	100000	5.0 x 6.0	Datasheet	RoHS	REACH
228H	Single or Tri-Color Illumination	SideVertical	IP67	Surface Mount Gull WingThrough-hole	100000	5.2 x 8.0	Datasheet	RoHS	REACH
