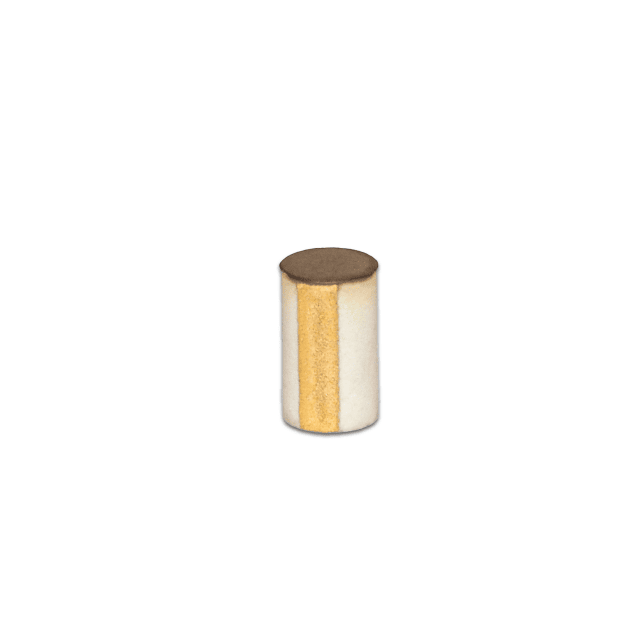

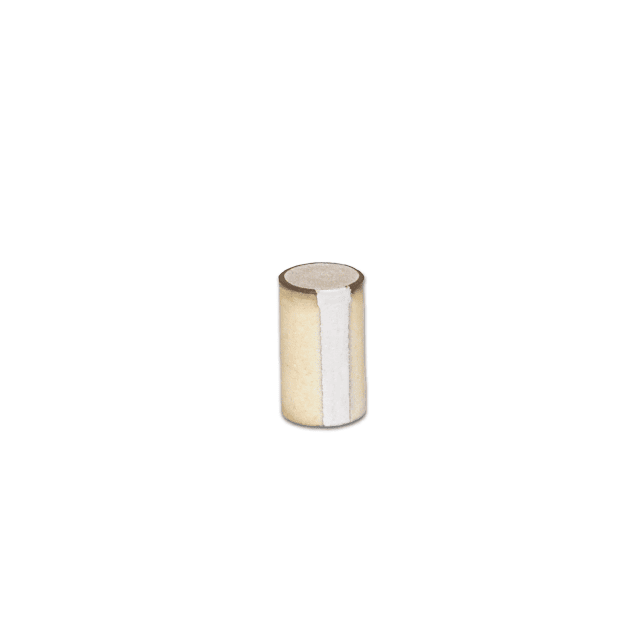

Cylinder Transducer with Strip of Printed Piezoelectric Thick Film

Main Content

InSensor™ Thick Films

InSensor™ thick films from CTS are based on our popular Pz26 hard-doped PZT formulation. The material is developed for compatibility with several industry-common substrates including silicon (often used in MEMS-applications), alumina and porous ceramics, upon which it can be deposited via screen printing or pad printing. Single channel transducers, linear arrays and complex layouts can be created through patterning. CTS delivers a complete solution including substrate, piezoelectric film and electrodes.



Features

  • Thick Film PZT Based on Hard-Doped Pz26
  • Compatibility with Industry-Common Substrates (Silicon, Alumina, Porous Ceramics)
  • Depositable via Screen and Pad Printing
  • Material-Efficient Additive Manufacturing Process
  • Complex Structures Possible

Applications

  • High-Frequency Ultrasound Imaging
  • MEMS Sensors
  • Phased and Annular Arrays
  • Energy Harvesting

Custom Solutions

InSensor™ products are designed and manufactured specifically according to customer specifications. We will be happy to help you in the development and production of new devices for your applications. Thanks to our years of experience with materials and processes, the InSensor™ team may also be able to integrate the PZT thick film technology with other substrates. Feel free to contact us with details of your specific challenge.

InSensor™ Thick Film Specifications

Thick film products can be designed according to customer specifications.

The table below shows some of our capabilities.

Technical Specifications
Compatible Substrates Porous PZT, Silicon, Alumina
Substrate Radius of Curvature > 10 mm
Frequency Range 10 to 60 MHz
Pattern Size (Line or Gap) > 50 µm
  • Related Products
  • Technical Resources
Please wait while we gather your results.

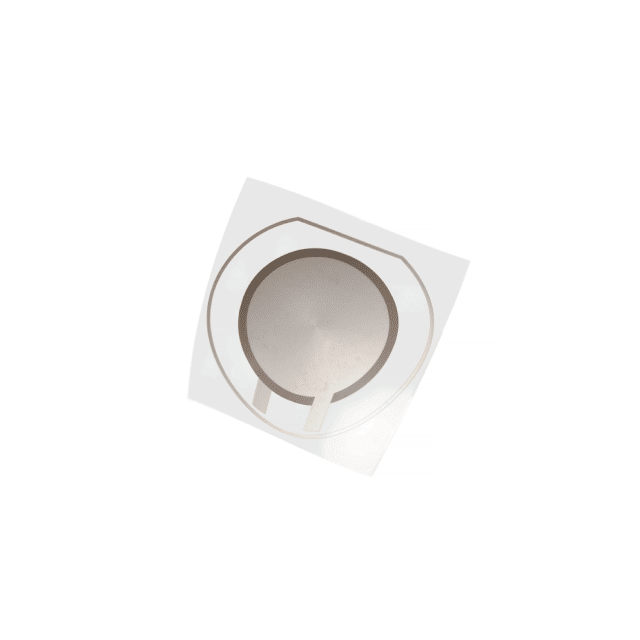

PiezoPaint Patch from CTS Corporation

PiezoPaint™ Flexible Patches

PiezoPaint offers flexible substrate compatibility and is an ideal piezoelectric solutions for garment, textile and other soft material applications.

CTS Bulk Piezoceramic Plates in different sizes

Piezoceramic Plates, Wafers, Bars and Wedges

Rectuangular components, customizable in terms of size and frequency. The simple shape makes for easy system integration and broad applicability.

Thin Piezoelectric Single Crystal Plates from CTS Corporation on white background

Single Crystal Plates, Wafers and Bars

Commonly employed in medical ultrasound imaging, single crystal plates are versatile and reliable components that offer even stress distribution and accurate frequency control.

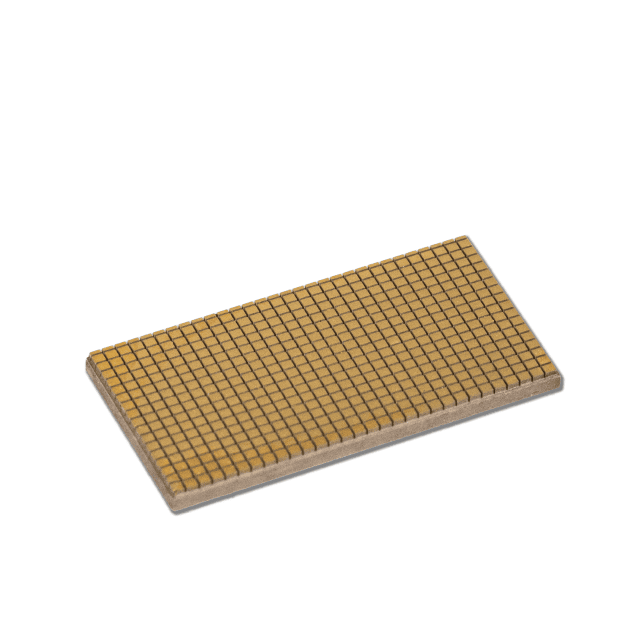

Piezoelectric Single Crystal Composite from CTS Corporation on white background
