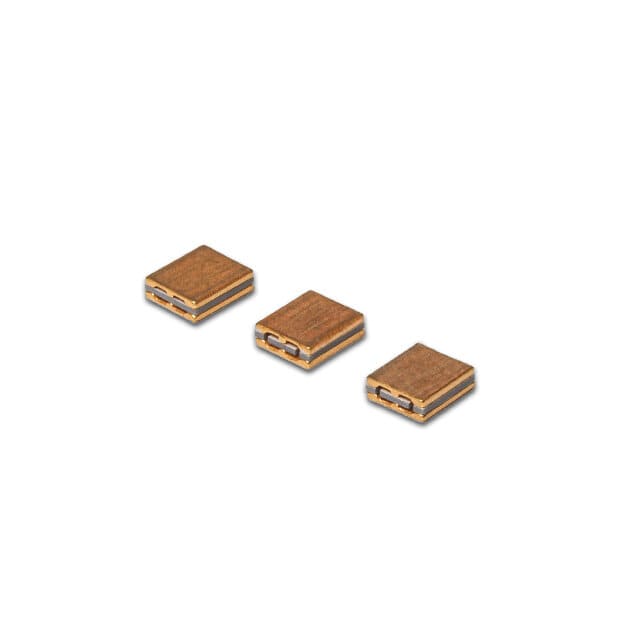

Piezoelectric bimorphs from CTS Corporation on white background

Main Content

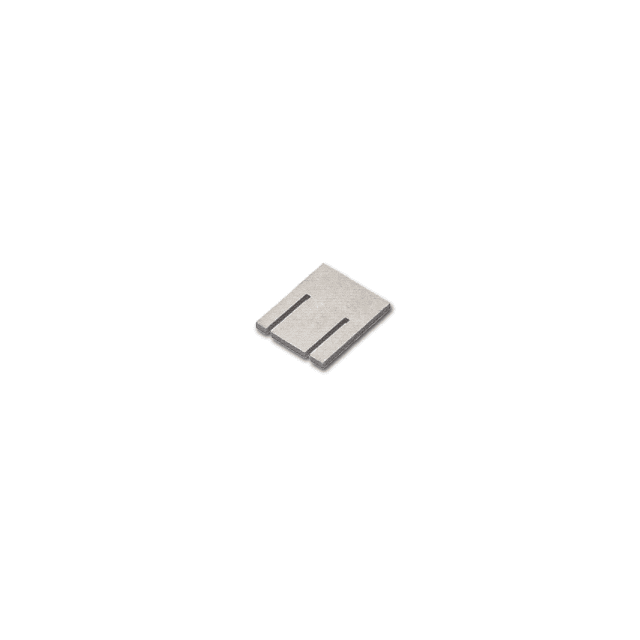

Bimorphs and Assemblies

CTS' multilayer bimorphs offer a high quality alternative to bulk piezoceramic unimorphs and bimorphs. They feature bending motion or sensing in a single cofired body without the use of adhesive.



Series Resources

Contact Us

Features

  • Temperature Stable
  • Symmetrical Design
  • Heat and Radiation Resistant
  • Plate or Disc Shape

Applications

  • Accelerometer
  • Vortex Flow Meter
  • Pacemaker
  • Audio Applications

Add-Ons and Custom Solutions

Multilayer bimorphs are manufactured according to customer specifications. Our capabilities include parallel or series configuration, electrode material and layout, cut-outs, shape, dimensions, tolerances and final inspection. Contact us to enquire about our custom capabilities.

Common Shapes and Size Ranges

The products can be designed to specific dimensional or frequency requirements within our capabilities.

Please note that not all combinations are possible.

Technical Specifications
Length 0.5 to 75 mm
Width 0.5 to 75 mm
Thickness 0.3 to 2 mm
Electrical Configuration Series or Parallel
  • Related Products
  • Technical Resources
Please wait while we gather your results.

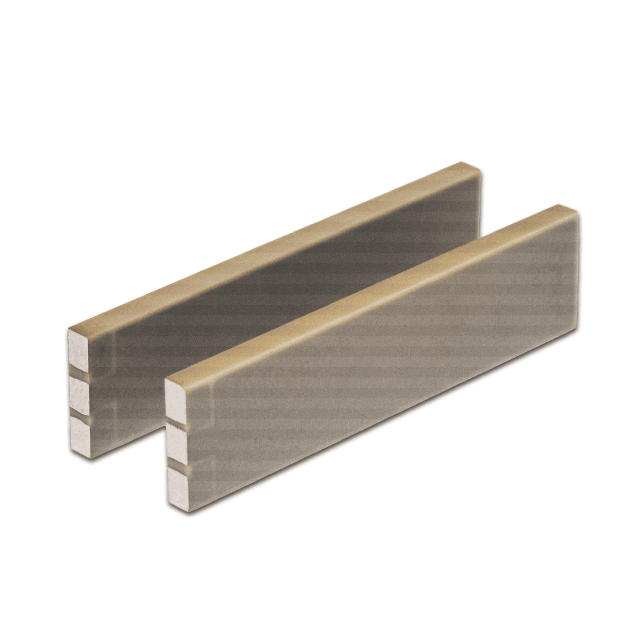

Piezoelectric Multilayer Rectangular Plate Benders from CTS Corporation
