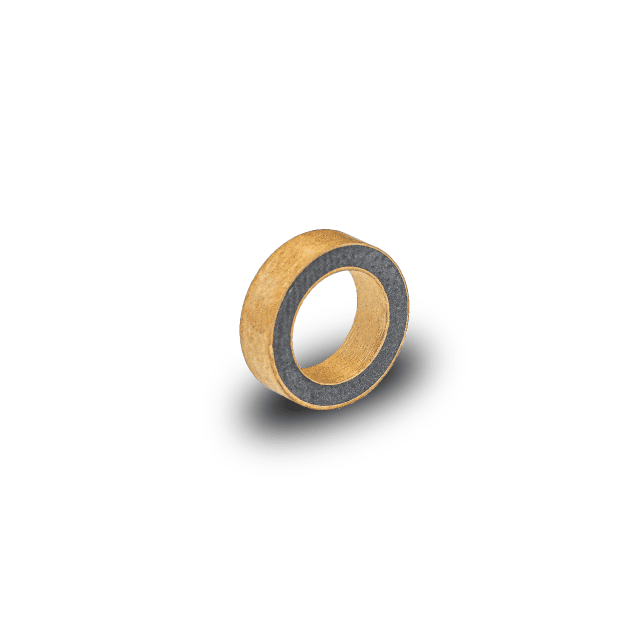

Piezoceramic Tubes and Cylinders

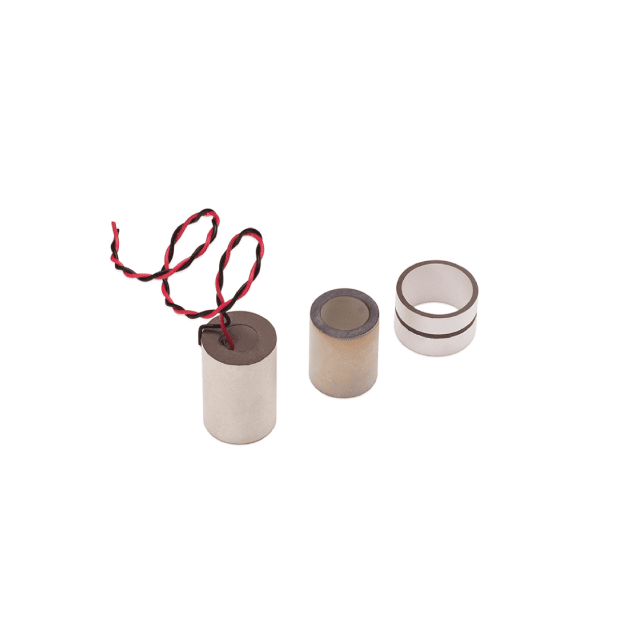

Piezoceramic tubes on white background

Main Content

Tubes and Cylinders

Piezoelectric ceramic tubes and cylinders from CTS provide radial symmetry for 360° actuation and even axial vibration, good resonance control, reliable operation and high durability. They are typically utilized for either their radial or wall thickness vibration mode.



Series Resources

Contact Us

Features

  • High-Quality Product
  • Durable and Reliable Performance
  • Shear Components Available
  • Wide Range of Customizations
  • High-Temperature and Lead-Free Options

Applications

  • Underwater Communication
  • Hydrophones
  • Accelerometers
  • Acoustic Positioning
  • Inkjet Printing
  • Denervation

Add-Ons and Custom Solutions

The majority of piezoelectric components from CTS are custom designed for specific applications with unique requirements. Our capabilities for piezoceramic tubes and cylinders include:

  • Machined Features
  • Burn-In
  • Electrode Materials (Silver, Gold, Nickel-Vanadium etc.)
  • Inspection
  • Special Tolerances
  • Electrode Designs (Wrap-Around, Concentric, Segmented etc.)

Common Shapes and Size Ranges

Our piezoceramic tubes and cylinders can be produced in this range:
*Please note that not all combinations are available.

Technical Specifications
Outer Diameter 1 mm to 200 mm
Minimum Wall Thickness 0.25 mm
