Piezoceramic Composites

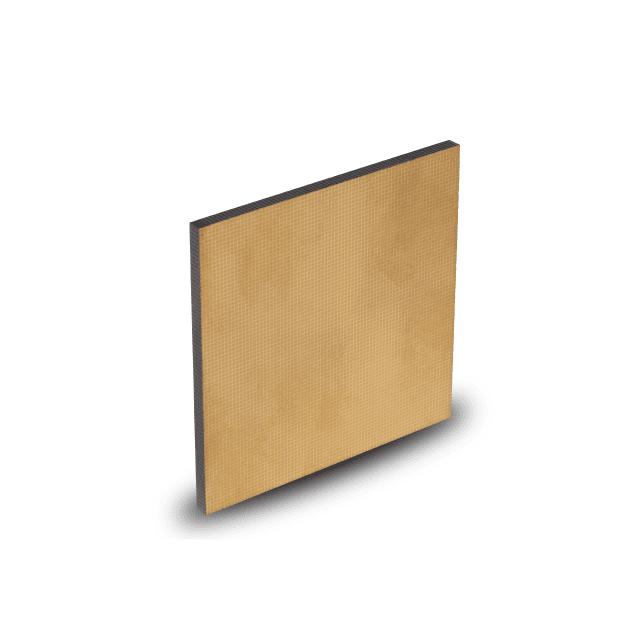

Piezoceramic Composites from CTS Corporation on white background

Main Content

Composites

Combining the strengths of piezoelectric ceramics and polymer resins, our composites posses both strong piezoelectric activity, high electromechanical coupling and great mechanical flexibility. These products are often used in medical imaging applications and therapeutic ultrasound.



Series Resources

Piezo Line Product Catalogue

Contact Us

Features

  • High-Quality Product
  • Improved Impedance Matching
  • 1-3 and 2-2 Composite Designs
  • Increased Thickness Coupling
  • Damped Lateral Modes
  • Wide Range of Piezo Materials

Applications

  • Medical Imaging
  • High-Intensity Focused Ultrasound
  • Sonar
  • Non-Destructive Testing (NDT)

Add-Ons and Custom Solutions

The majority of CTS’ products are custom designed for specific applications featuring unique performance requirements. Custom capabilities for piezoceramic composites include:

  • Special Shapes
  • Electrode Configurations
  • Filler Materials



Common Shapes and Size Ranges

Our piezoceramic composites can be produced in these ranges:
*Please note that not all combinations are available.

Technical Specifications
Length/Width < 100mm
Thickness 0.05mm to 4mm
Kerf 15µm to 150µm
Pillar Width > 35µm
