OCXO

With wide temperature ranges, high frequencies, the lowest power and the industry leading phase noise and stability, CTS oven-controlled crystal oscillators (OCXOs) offer a performance advantage to our customers.

Reach out to us with any questions.
We're happy to help.

Contact Us

Features
Applications
Featured Products
Technical Resources
Engineering Tools

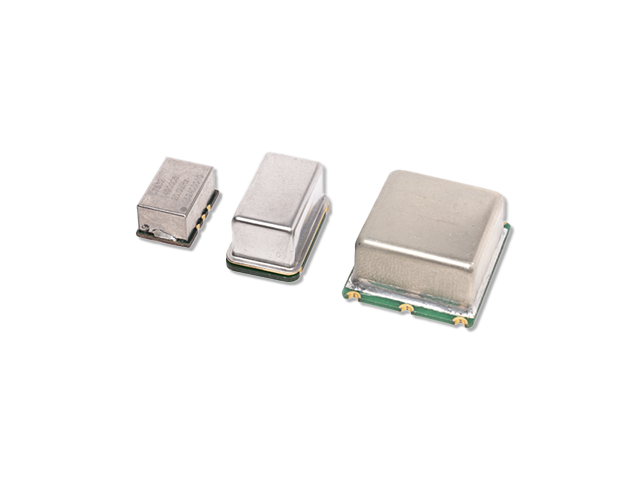

Three CTS OCXO products on white background

Low Phase Noise (-170 dBc/Hz Floor Available)
Ultra Low Power (<150 mW)
High Frequency, up to 300 MHz
Miniature 9 x 14 mm, DIL 14 Package Size (Reaching 10 ppb pk-pk over Industrial Temp Range)
High Stability – to 0.2 ppb over -40/+85°C
1 μsec Typical for 8 hr Holdover
Low G-Sensitivity (0.3 ppb/G for Select Products)

Communications Networks (5G, 1588 Backhaul and Fronthaul, Ethernet Link)
Low Noise Military Communications/Radar
Datalink for Airborne Broadband Systems
Stable Reference for Ocean Bottom Node Mapping
Test and Measurement
Stratum 3 and 3E Holdover and Wander Generation
Microwave Communications
Mobile and Battery Applications
Stratum 2 Timing
Wireless Base Stations (UMTS, GSM, CDMA, LTE)
Timing over Packet

Please wait while we gather your results.

Results Updated

8 Results Listed

Causes of Crystal Aging in Oscillators

Abstracts / White Papers, Application Notes / Tech Briefs

Frequency Control Products - OCXO Brochure

Brochures / Catalogs

High-Temperature Frequency Control Solutions

Abstracts / White Papers, Application Notes / Tech Briefs

Jitter and Phase Noise Reduction in Timing References - CTS Corporation

Jitter & Phase Noise in Timing References

Abstracts / White Papers, Application Notes / Tech Briefs

Low-Power Oven-Controlled Crystal Oscillators from CTS - Application Note

OCXOs and LPOCXOs for Low-Power Applications

Application Notes / Tech Briefs

Packaging and Sealing Methods for CTS Frequency Control Products

Quartz Oscillator Packaging and Sealing Methods

Application Notes / Tech Briefs

Vibration-Induced Phase Noise in Quartz Oscillators

Abstracts / White Papers, Application Notes / Tech Briefs

What Is an OXCO?

Abstracts / White Papers, Application Notes / Tech Briefs

The tools listed are not managed by CTS Corporation. CTS is not responsible should any inaccuracies occur from using tools or resources managed by external websites.

Phase Noise to Jitter Calculator

LC Filter Design Tool

Phase Noise Under Vibrations Calculator

Please wait while we gather your results.

Results Updated

21 Results Listed

Skip to Filters

Series	Output	Frequency Range (MHz)	Frequency Stability (ppb)	Package (mm)	Voltage (V)	Temperature Range (C)	Data Sheet	ROHS	Reach Statement

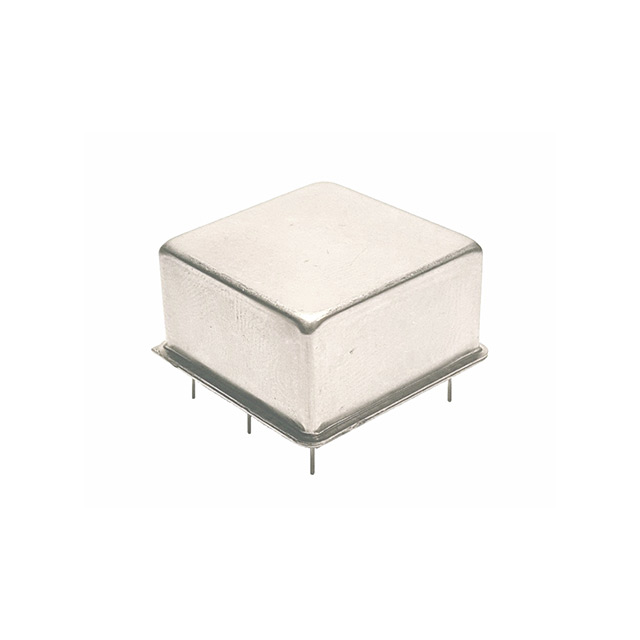

1188	HCMOSSine	10 - 40	±100±50±30±20±1010 pk-pk	25x25x13 Thru-Hole	3.3V5.0V12.0V	-40°–85°-30°–70°-20°–70°0°–50°0°–70°	Data Sheet	ROHS	Reach Statement
1190100	HCMOS	20	10 pk-pk	25x22x12.7 SMD	3.3V5.0V	-40°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
1190200	HCMOS	12.8	10 pk-pk	25x22x12.7 SMD	3.3V5.0V	-40°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
1190300	HCMOS	24.576	10 pk-pk	25x22x12.7 SMD	3.3V5.0V	-40°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
1198	HCMOSSine	10 - 40	±100±50±30±20±1010 pk-pk	25x22x12.7 SMD	3.3V5.0V	-40°–85°-30°–70°-20°–70°-10°–60°0°–50°0°–70°	Data Sheet	ROHS	Reach Statement

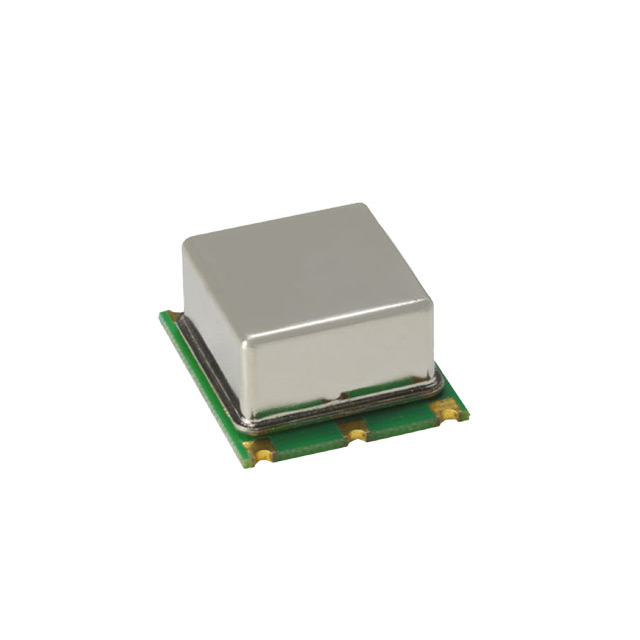

1198004	LVCMOS	48	±20	25x22x12.7 SMD	3.3V	-40°–85°	Data Sheet	ROHS	Reach Statement

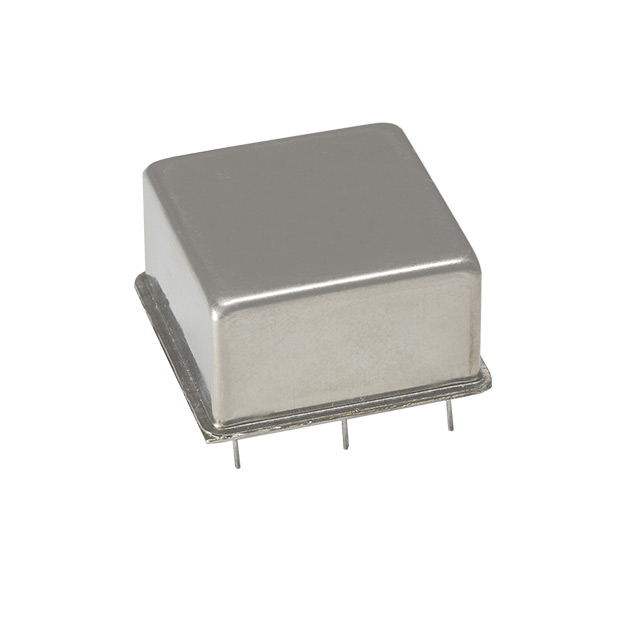

1228	HCMOSSine	10 - 40	±100±50±30±20±1010 pk-pk	20x20x11 Thru-Hole	3.3V5.0V	-40°–85°-30°–70°-20°–70°-10°–60°0°–50°0°–70°	Data Sheet	ROHS	Reach Statement

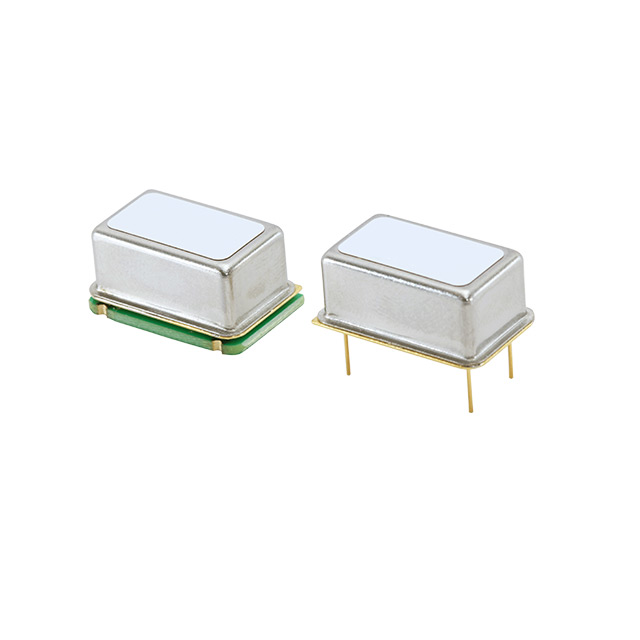

137	HCMOS	10 - 26	±250±100±50	20x13x11 SMD20x13x11 Thru-Hole	3.3V5.0V	-40°–85°-20°–70°-10°–60°0°–50°0°–70°	Data Sheet	ROHS	Reach Statement
138	HCMOS	10 - 26	±100±50±20±1010 pk-pk	20x13x11 SMD20x13x11 Thru-Hole	3.3V5.0V	-40°–85°-20°–70°-10°–60°0°–50°0°–70°	Data Sheet	ROHS	Reach Statement
1380100	HCMOS	20	10 pk-pk	20x13x11 SMD20x13x11 Thru-Hole	3.3V5.0V	-40°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
1380200	HCMOS	12.8	10 pk-pk	20x13x11 SMD20x13x11 Thru-Hole	3.3V5.0V	-40°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
1380300	HCMOS	24.576	10 pk-pk	20x13x11 SMD20x13x11 Thru-Hole	3.3V5.0V	-40°–85°-20°–70°	Data Sheet	ROHS	Reach Statement
149	HCMOS	10 - 50	±100±50±20±1010 pk-pk	14.9x9.7x7.0 SMD	3.3V5.0V	-40°–85°-20°–70°-10°–60°0°–50°0°–70°	Data Sheet	ROHS	Reach Statement

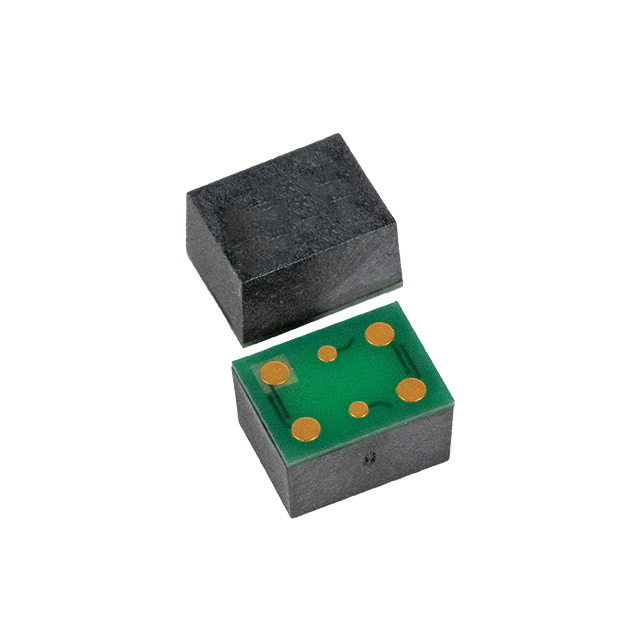

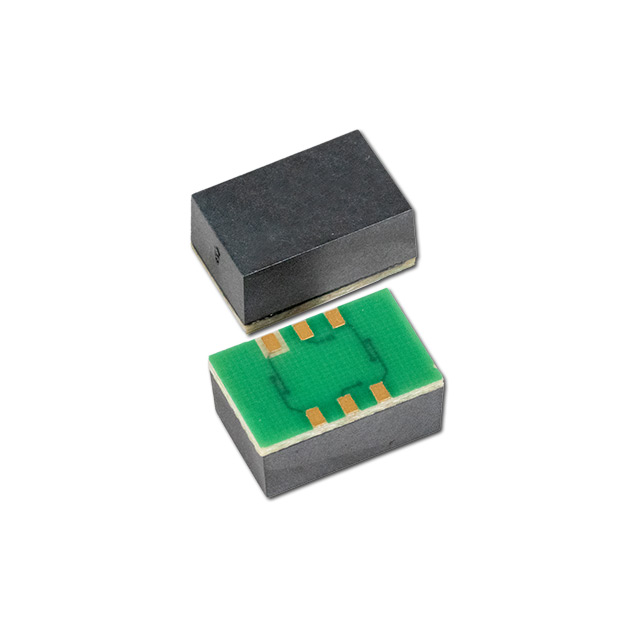

1499	LVCMOS	10 - 50	±100±50±20±10	14.6x9.6x6.7 SMD	3.3V	-40°–85°-20°–70°0°–70°	Data Sheet	ROHS	Reach Statement

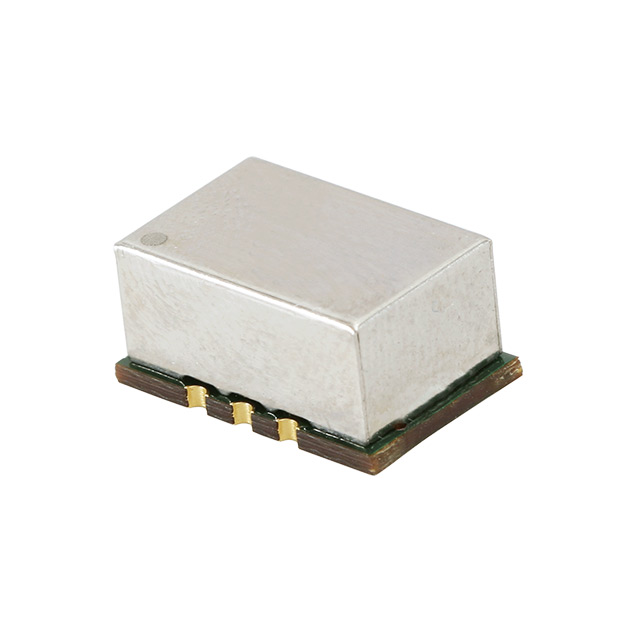

150	HCMOS	10 - 50	±250±200±100	14.9x9.7x7.0 SMD	3.3V5.0V	-40°–85°-20°–70°-10°–60°0°–50°0°–70°	Data Sheet	ROHS	Reach Statement
1500001	HCMOS	20	±100	14.9x9.7x7.0 SMD	3.3V	-40°–85°	Data Sheet	ROHS	Reach Statement
1500002	HCMOS	12.8	±100	14.9x9.7x7.0 SMD	3.3V	-40°–85°	Data Sheet	ROHS	Reach Statement
151	LVCMOS	10 - 50	±100±50±20±10	9.8x7.6x5.65 SMD	3.3V	-40°–85°-20°–70°0°–70°	Data Sheet	ROHS	Reach Statement

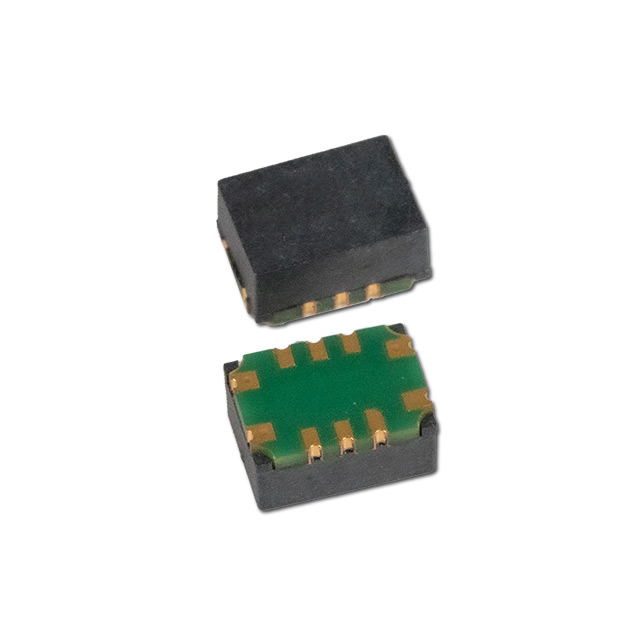

152	LVCMOS	10 - 50	±100±50±20±10	7.2x5.2x3.5 SMD	3.3V	-40°–85°-20°–70°0°–70°	Data Sheet	ROHS	Reach Statement

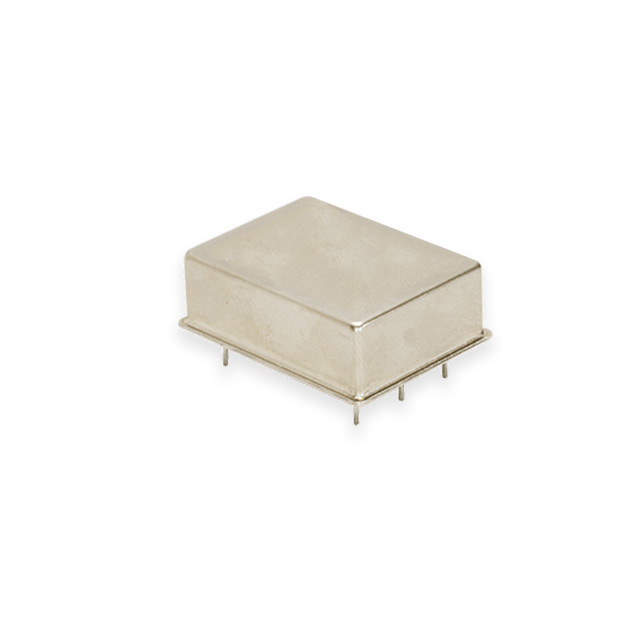

196	HCMOSSine	10 - 38.88	±20±10	36x27x14 Thru-Hole	3.3V5.0V12.0V	-40°–85°-10°–70°	Data Sheet	ROHS	Reach Statement
197	HCMOSSine	10	1 pk-pk0.8 pk-pk0.5 pk-pk0.2 pk-pk	36x27x13 Thru-Hole	5.0V12.0V	-40°–85°-30°–70°-20°–70°-10°–60°0°–50°0°–70°	Data Sheet	ROHS	Reach Statement
