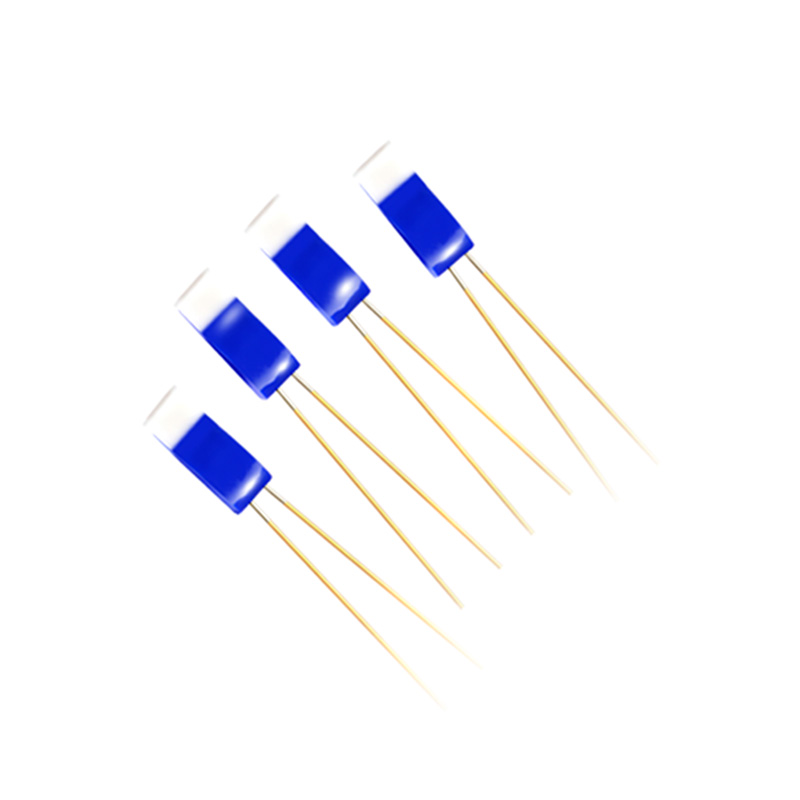

Platinum Temperature Sensors

Thin film Platinum Resistance Temperature Detectors from TT-PT group are very commonly used components in industrial applications thanks to very high precision and long term stability. Tewa Electronics Group offers three standard types of PT RTDs: PT100, PT500 and PT1000, that can be provided in standard tolerance classes.

Series Resources

Features

  • Operating Temperature Range between -40°C and 400°C
  • High quality materials used for production assure very good long term stability and reliability also at high temperature
  • Good High Voltage withstanding provided by ceramics that is used for surface coating
  • Very good resistance against shock and vibrations

Applications

  • Liquid or gas temperature control and monitoring
  • Industrial applications
  • As a sensing element used in wide range of standard and custom temperature sensors manufactured by Tewa Electronics Group
  • Linear characteristics a = (R100 - R0 ) / (100 x R0 ) = 0,00385°C-¹.
  • Standard resistance values at 0°C: 100Ω, 500Ω or 1000Ω
Specifications
Sensor TypePlatinum
Sensor Mount
MaterialCeramic
Temperature Range-80°–400°
Beta ValueTCR= 3850ppm/°C
ResistancePT100, PT500, PT1000
ToleranceClass A,B, 1/3B, 2B
