DPX1025A

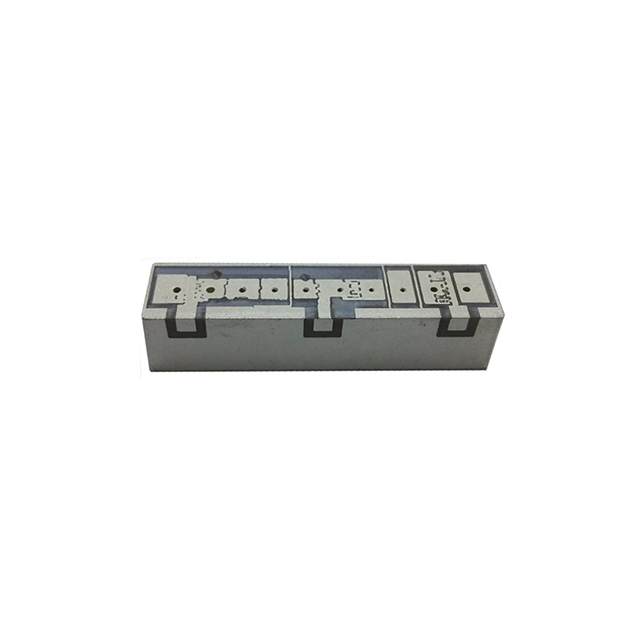

Diplexers DPX1025A

Band 4/10 vs 2/25 Diplexer with 34mm Universal footprint

Surface mount, silver (Ag) coated ceramic duplexer. Developed for use in Infrastructure Applications.

Filter complies with RoHS standards.

Series Resources

  • Low Insertion Loss
  • Low Ripple
  • Wide passband response
Specifications
Frequency Band Number10/2 / 10/25 / 4/2 / 4/25
Low Passband Frequency Range1710 - 1780|2110 - 2180
High Passband Frequency Range1850 - 1995
Band Rejection Attenuation20
Max Insertion Loss (dB)<1.8
Power (W)3
L x W x H34x0x9.0
