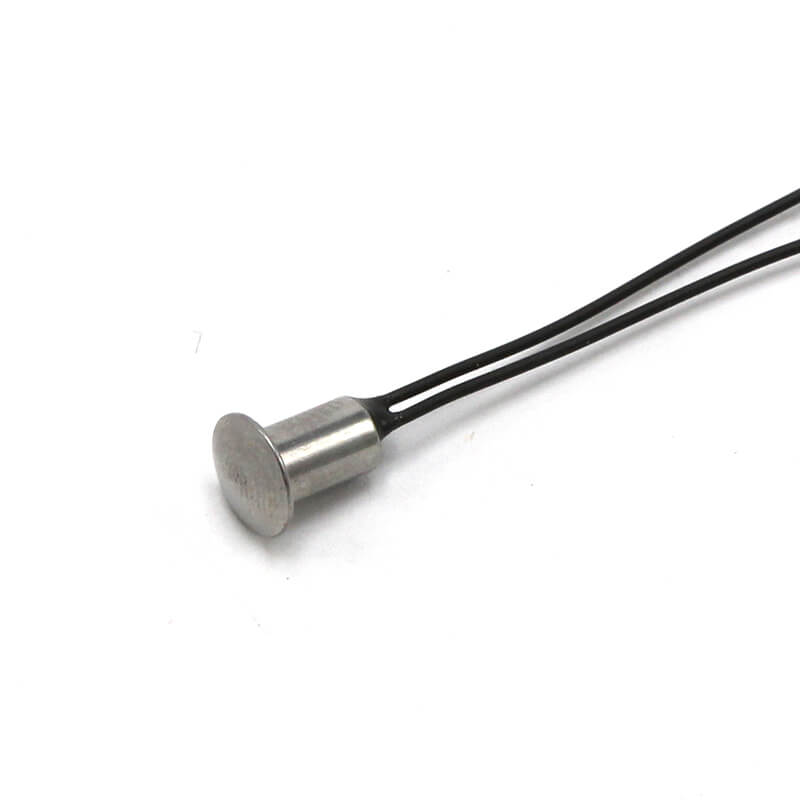

Rivet-style surface temperature sensor

The 6027 Series is ideal for harsh environments and can easily be attacched to flat surfaces due to its small size and light weight features. The riveted design allows for a clean-looking flush mount in a variety of industry applications. CTS can customize these sensors in a variety of ways. Sensor resistance values and accuracy, as well as cable length and color are all able to be specified.

Series Resources

Features

  • NTC thermistor probe assembly
  • Available in a variety of sizes
  • Designed for harsh environments
  • Ideal for overmolding
  • Housing material options: stainless steel, anodized aluminum

Stainless steel rivet housing
Specifications
Sensor TypePlatinum RTD Thermistor
Sensor MountAdhesive
MaterialStainless steel
Temperature Range-40°–125°
Beta Value3977, 3435, 3690, 4260, Custom
Resistance10000 / 100000 / 2252 / 3000 / 30000 / 5000 / 50000 / Custom / Pt100 / Pt1000
Tolerance0.1C (0C to 70C) / 0.2C (0C to 70C) / 1% / 2% / 5% / Custom
