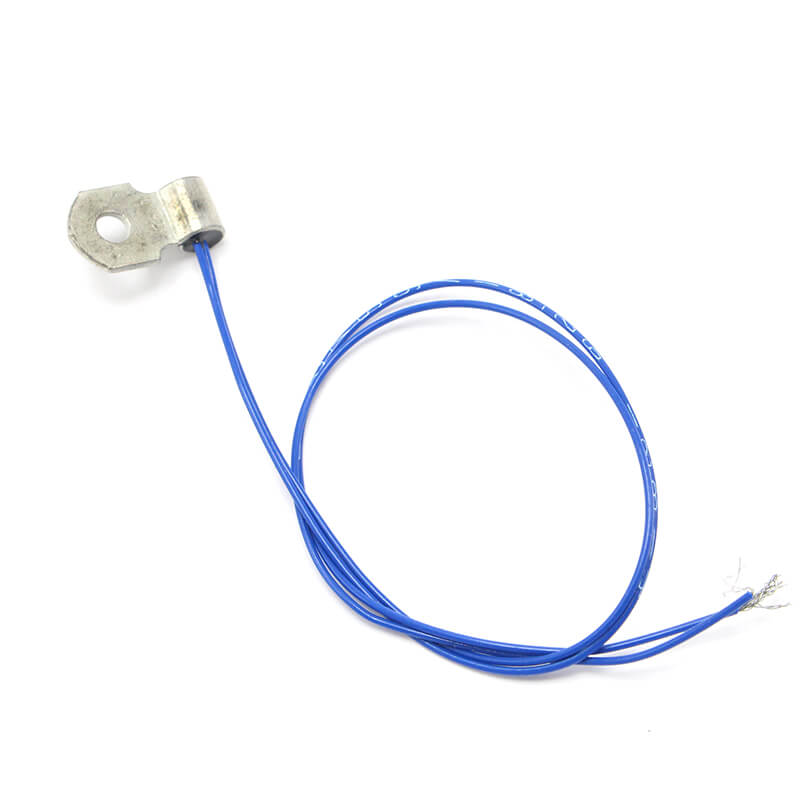

Flag terminal surface temperature sensor

The 6025 flag ring lug probe sensor is a cost effective solution for surface temperature measurement and can be customized to meet any industry or application requirement.
CTS can customize these sensors in a variety of ways. Sensor resistance values and accuracy, as well as cable length and color are all able to be specified.

Series Resources

Features

  • NTC thermistor assembly
  • Available in a variety of sizes with or without insulation
  • Standard lug sizes #4 to #12 with additional styles available
  • Typical wire sizes #24 to #28 AWG
  • Housing material options: tinned copper or nickel-plated steel
  • RoHS compliant options available
Flag terminal mounting on flat plate or other surface
Specifications
Sensor TypePlatinum RTD Thermistor
Sensor Mount#4 screw / #6 screw / #8 screw
MaterialTin plated copper
Temperature Range-40°–125°
Beta Value3977, 3435, 3690, 4260, Custom
Resistance10000 / 100000 / 2252 / 3000 / 30000 / 5000 / 50000 / Custom / Pt100 / Pt1000
Tolerance0.1C (0C to 70C) / 0.2C (0C to 70C) / 1% / 2% / 5% / Custom
