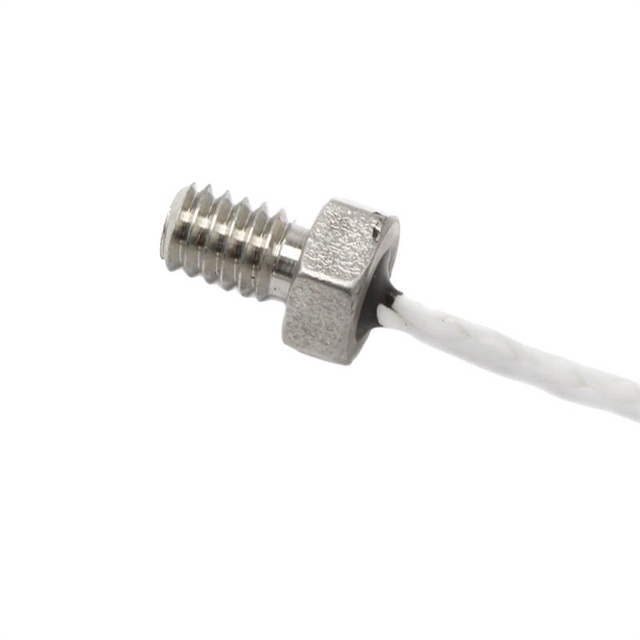

Hex head threaded surface temperature sensor

The 6007 Series NTC thermistor assemblies are ideal for a variety of science and medical applications as well as heat-shrink or power transistor over-temperature protection. Many hex nut styles and sizes are available. CTS can customize these sensors in a variety of ways. Sensor resistance values and accuracy, as well as cable length and color are all able to be specified.

Series Resources

Features

  • NTC thermistor assembly
  • Housing material options: aluminum, brass, stainless steel, titanium
  • Custom design solutions for response time, sensor mounting, cable/connector
  • Available in metric and reverse threads
  • Medical grade stainless steel passivation available
  • Typical wire sizes: #26 to #28 AWG
Specifications
Sensor TypePlatinum RTD Thermistor
Sensor MountMetric threads / SAE threads
MaterialStainless steel, Aluminum, Titanium, Brass, Nickel plated brass
Temperature Range-40°–125°
Beta Value3977, 3435, 3690, 4260, Custom
Resistance10000 / 100000 / 2252 / 3000 / 30000 / 5000 / 50000 / Custom / Pt100 / Pt1000
Tolerance0.1C (0C to 70C) / 0.2C (0C to 70C) / 1% / 2% / 5% / Custom
