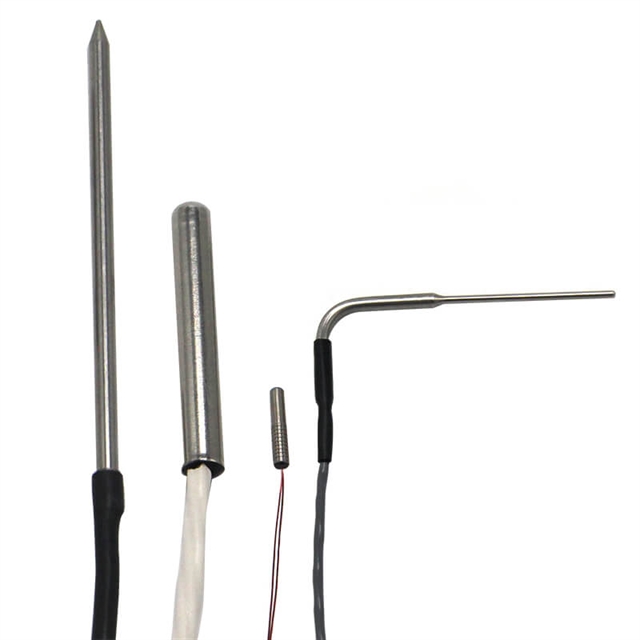

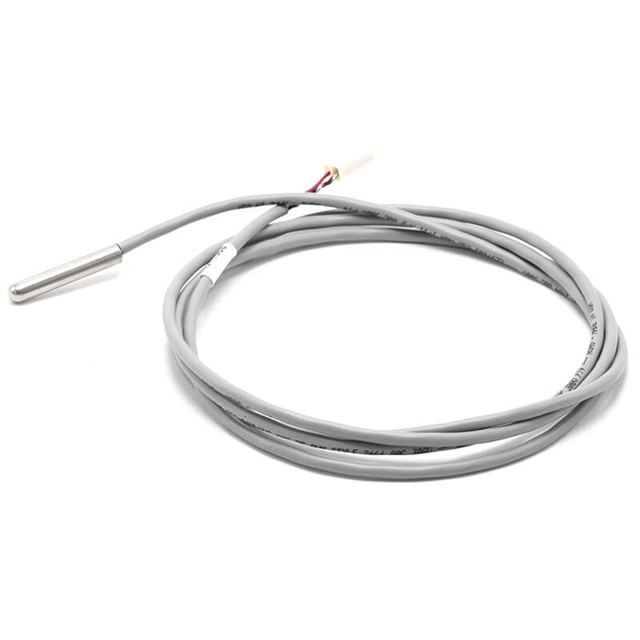

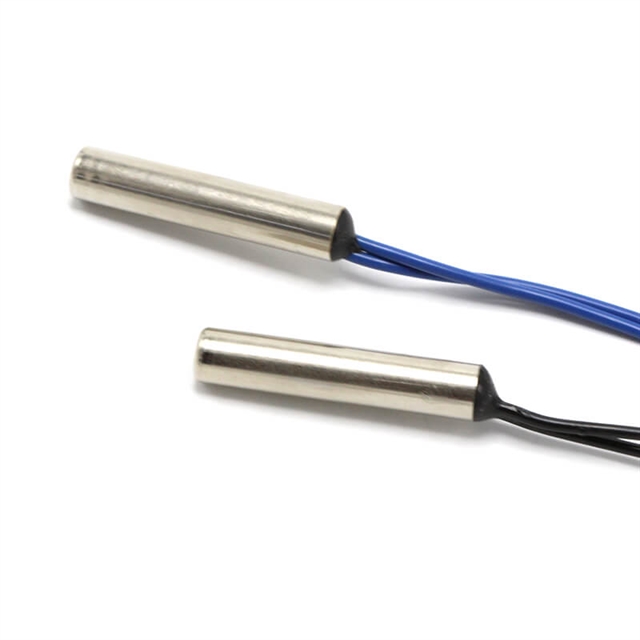

Closed-end tube liquid temperature sensor

The 6005 Series is a versatile sensor for temperature measurement of liquid in a variety of industry applications. CTS is able to customize these assemblies with an NTC thermistor, RTD or thermocouple sensing element. Housing material and size can also be specified. CTS can customize these sensors in a variety of ways. Sensor resistance values and accuracy, as well as cable length and color are all able to be specified.

Series Resources

Features

  • Choose from the following sensing elements: (NTC thermistor,  RTD, or thermocouple)
  • Standard sizes are 0.040 inches to 0.250 inches in diameter
  • Housing material options: stainless steel, brass, titanium, Inconel, Hastelloy
  • Typical wire sizes #22 to #32 AWG
  • Moisture resistant
  • Termination type, cable length, housing style, and wire style can all be customized
  • Available in multiple accuracies and values
  • RoHS compliant options available
Specifications
Sensor TypePlatinum RTD Thermistor
Sensor MountClamp
MaterialStainless steel, Brass, Nickel plated brass, Aluminum, Titanium, Copper, Inconel, Hastelloy
Temperature Range-40°–125°
Beta Value3977, 3435, 3690, 4260, Custom
Resistance10000 / 100000 / 2252 / 3000 / 30000 / 5000 / 50000 / Custom / Pt100 / Pt1000
Tolerance0.1C (0C to 70C) / 0.2C (0C to 70C) / 1% / 2% / 5% / Custom
