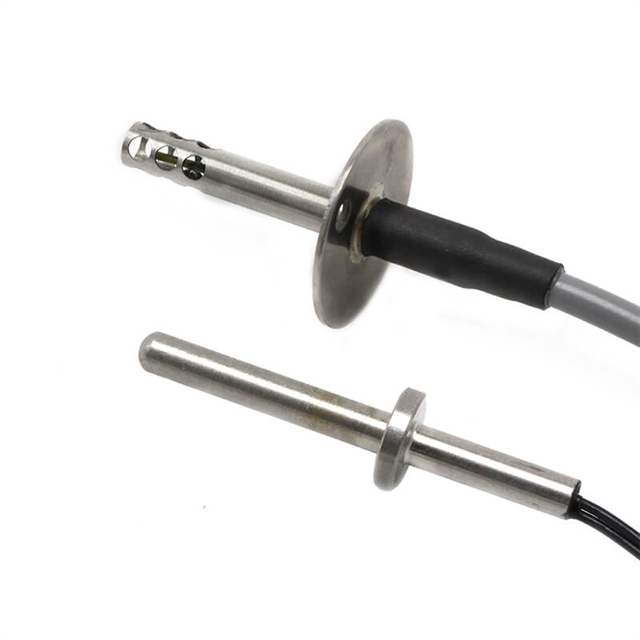

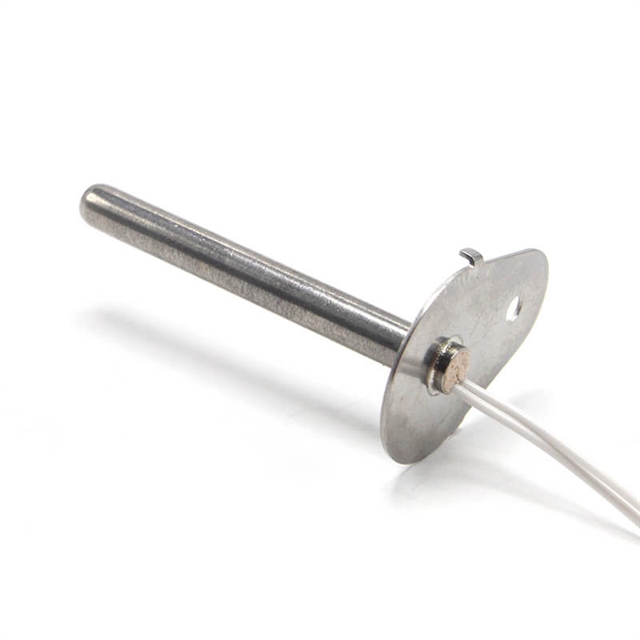

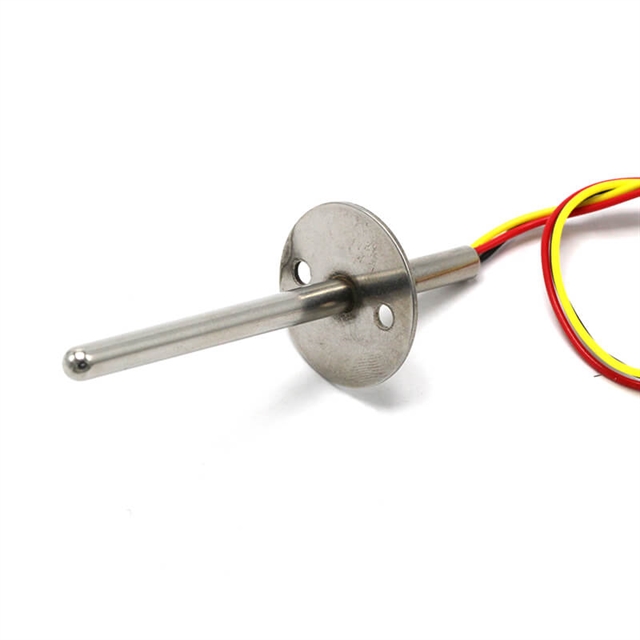

Flange mounted air & gas temperature sensor

The 6004 Series of stainless steel flange thermistor probes is an ideal choice for air and gas (open-tip model recommended) temperature measurement. These sensors are available in a variety of sizes and flange shapes, with open or closed tips, and with or without brazed flanges. The flanged mount design allows for easy installation in tight areas. This series can be used in mechanical rooms, pipes, ducts, and immersion installations to provide accurate temperature measurements. Mounting flange is pre-drilled with a #6 hole to provide easy installation.

Series Resources

Features

  • Choose from the following sensing elements: RTD, NTC thermistor, or thermocouple
  • Flange can be screwed or riveted in place
  • Typical wire sizes: #22 to #28 AWG
  • Stainless steel flanged housing
  • Available in multiple lead and connector configurations
  • RoHS compliant options available
Specifications
Sensor TypePlatinum RTD Thermistor
Sensor MountFlange
MaterialStainless steel
Temperature Range-40°–125°
Beta Value3977, 3435, 3690, 4260, Custom
Resistance10000 / 100000 / 2252 / 3000 / 30000 / 5000 / 50000 / Custom / Pt100 / Pt1000
Tolerance0.1C (0C to 70C) / 0.2C (0C to 70C) / 1% / 2% / 5% / Custom
