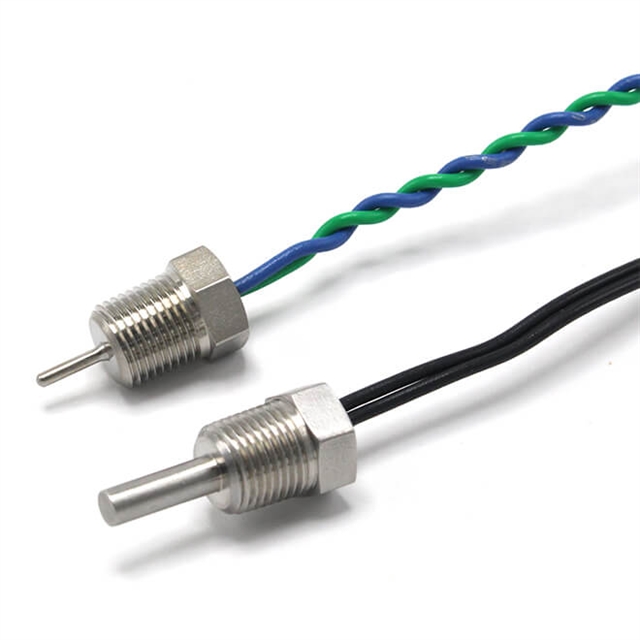

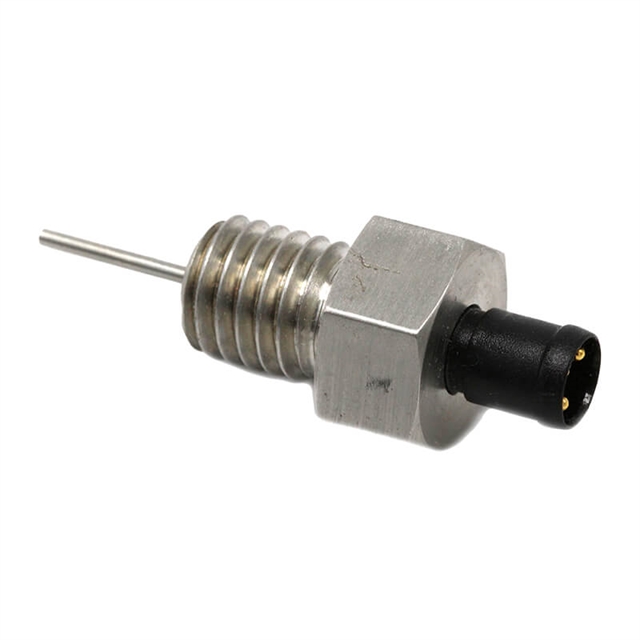

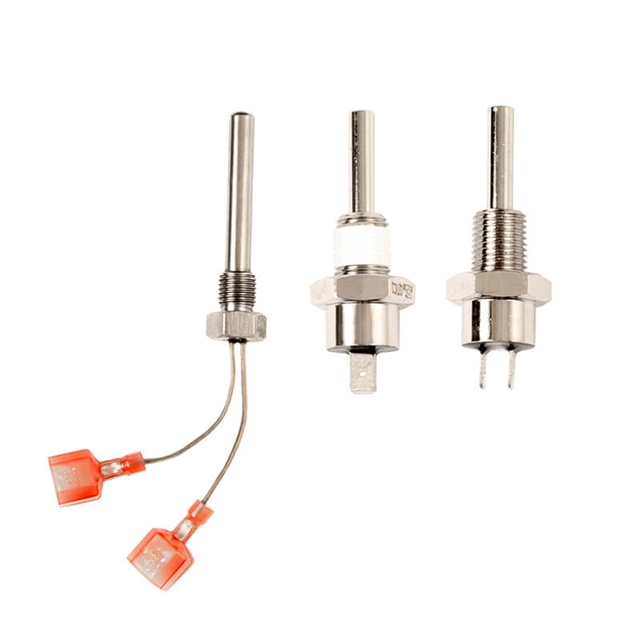

Hex head threaded liquid temperature sensor

The 6001 Series is an industrial thermistor sensor line for use in a wide variety of liquid immersion applications but are usually mounted into pipes and tanks. The threaded metal housing reduces the stress on the sensor but still allows thermal contact with fluid. These threaded temperature sensors are designed for the most rigorous applications and provides a tight fitting seal to ensure accurate readings.

CTS can customize these sensors in a variety of ways to meet OEM requirements for probe length, cable length/color, sensor resistance value/accuracy, and connector type

Series Resources

Features

  • Integrated connector design for reliability and ease of installation
  • Moisture resistant
  • Housing materials options: stainless steel, brass, or nickel
  • Sensor housing is completely customizable to meet OEM mounting, connection and performance requirements
  • Choose from the following sensing elements: NTC thermistor, RTD, or thermostat
  • Fast thermal time response to maximize system efficiency
  • Optional redundant sensing elements
  • UL rated
  • RoHS compliant options available
Specifications
Sensor TypePlatinum RTD Thermistor
Sensor Mount1/4" NPT / 1/8" NPT / 3/8" NPT / Custom
MaterialStainless steel, Brass Nickel plated brass, Aluminum, Titanium, Copper, Inconel, Hastelloy
Temperature Range-40°–125°
Beta Value3977, 3435, 3690, 4260, Custom
Resistance10000 / 100000 / 2252 / 3000 / 30000 / 5000 / 50000 / Custom / Pt100 / Pt1000
Tolerance0.1C (0C to 70C) / 0.2C (0C to 70C) / 1% / 2% / 5% / Custom
